산업용 펌프를 위한 수력 10T 10R PTFE 울부짖기 밀봉

제품 상세 정보:
원래 장소: 중국에서 만들어집니다
브랜드 이름: JR
인증: iso9001
모델 번호: 10T 10R
결제 및 배송 조건:
최소 주문 수량: 100pc
가격: Negotiated
포장 세부 사항: 요구조건으로서의 박스
배달 시간: 10days
지불 조건: T / T, 웨스턴 유니온, L / C
공급 능력: 10000000PC/Month

상세 정보

재료: SIC SIC 바이톤 Cer 자동차 Nbr 기능: 오일 펌프, 물 펌프를 위해
운반 포장: 박스 HS는 코드화됩니다: 848420090
상술: 존 크레인 T9B 아에스시일 M02인 존 크레인 T109B는 스털링 290B 밀봉을 밀봉합니다 증명서: ISO9001
타입: 존 크레인 T109B 표준 또는 논스탠드: 표준
방식: 기계적 실링 10T 10R 사이즈: 0.5 -4 0.5 -4
하이 라이트:

10T 10R PTFE 울부짖기 밀봉

,

수력 PTFE 울부짖기 밀봉

,

10T 10R 수력 펌프 시일

제품 설명

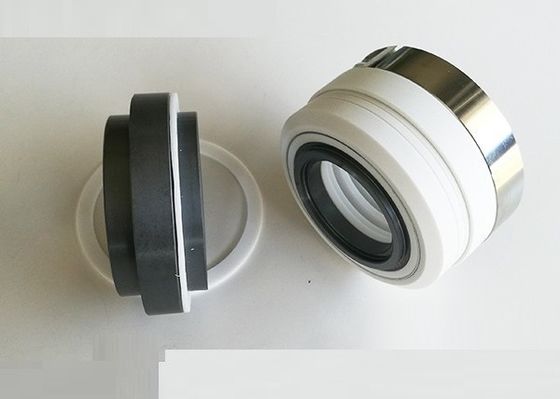

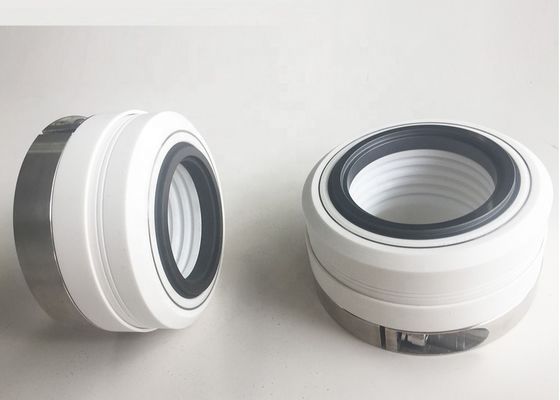

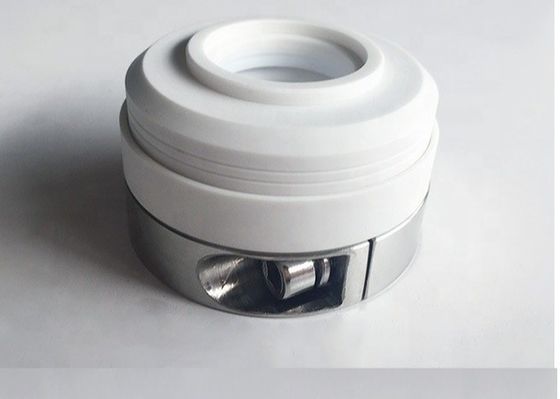

Mechanical Seal White PTFE Elastomer Bellow 10T 10R PTFE Seal for Industrial Pump



Operations Conditions:

mechanical seal,for blower pump, diving pump,circulating pump,

replace the mechanical seal of Burgmann and John Crane



Temperature:-20ºC to +120ºC
Pressure:≤0.5mpa
Speed:≤10m/s
Materials:
Stationary Ring:
Ceramic, Silicon Carbide
Rotary Ring:Ceramic ,Silicon Carbide
Secondary Seal:PTFE
Spring and Metal Parts:Stainless Steel
Seat Types:
Applications:Clean Water



Performance Capabilities:



Temperature
-20℃ to 120℃, dependent on the elastomer
Pressure
Up to 0.5mpa
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size-
25.4-50.8
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well

1. it is equivalent to

John crane 10T PTFE bellow mechanical hydraulic seals

2. Our seals can replace the original seals.

3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.

4.Customized products and OEM is welcomed

5. We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.



산업용 펌프를 위한 수력 10T 10R PTFE 울부짖기 밀봉 0

산업용 펌프를 위한 수력 10T 10R PTFE 울부짖기 밀봉 1산업용 펌프를 위한 수력 10T 10R PTFE 울부짖기 밀봉 2





We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal,

Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal,

Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal,

Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal,

Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal,

Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps,

Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,

Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
