HJ977GN 펌프 메커니컬 실

제품 상세 정보:
원래 장소: 중국에서 만들어집니다
브랜드 이름: JR
인증: ISO9001
모델 번호: HJ977GN
결제 및 배송 조건:
최소 주문 수량: 5pc
가격: Negotiated
포장 세부 사항: 요구조건으로서의 박스
배달 시간: 20-30DAYS
지불 조건: T / T, 웨스턴 유니온, L / C
공급 능력: 100000pc/month

상세 정보

재료: 원문대로 원문대로 바이톤 자동차 CER NBR 기능: 오일 펌프, 물 펌프를 위해
운반 포장: 박스 HS는 코드화됩니다: 848420090
상술: 힐데지 펌프 시일 HJ977GN 증명서: ISO9001
타입: HJ92N HJ977GN 버그만 힐데지 펌프 시일 표준: 표준
방식: 기계적 실링 상품 이름: 버그만 HJ977GN 밀봉
하이 라이트:

HJ977GN 펌프 메커니컬 실

,

2.5MPa 펌프 메커니컬 실

,

HJ977GN 파형 스프링 메커니컬 실

제품 설명

Mechanical Seal HJ92N HJ977GN Burgmann Hilge Pump Seal Wave Spring Mechanical Seal



Operational Conditions:

  1. Equivalent to Burgmann HJ92N
    Wave spring design,balanced seal
  2. Temperature: -20ºC to +180ºC
  3. Pressure: ≤2.5MPa
  4. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities

HJ977GN mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
10mm to 80mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Part :SS304  SS316

  • 1. Single shaft seal. Balanced seal with spring protection. The mechanical seal with optional direction of rotation.
  • 2.it is equivalent to
  • Burgmann HJ977GN seal
  • Hj93 28mm 38mm is used in Hilge pump specially
  • 3.Our seals can replace the original seals.
  • 4.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.
  • 5.Customized products and OEM is welcomed
  • 6. 12 YEARS EXPERIENCE ,We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

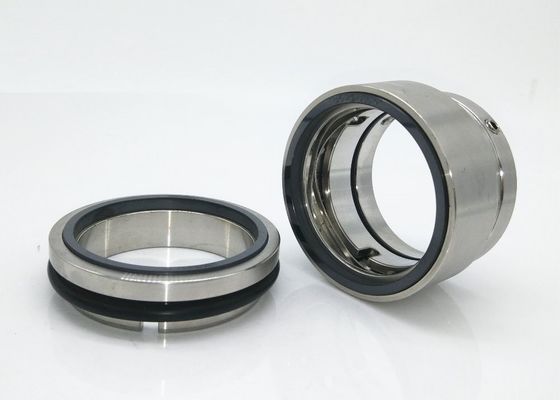

HJ977GN 펌프 메커니컬 실 0

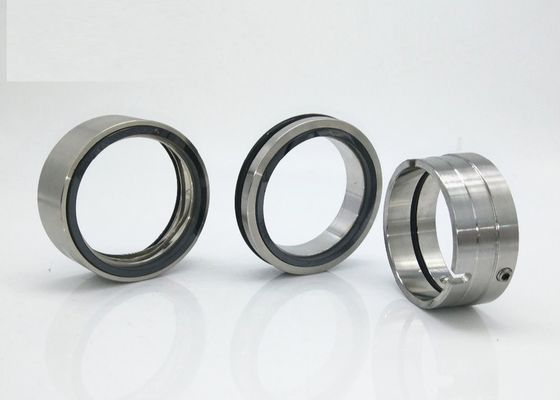

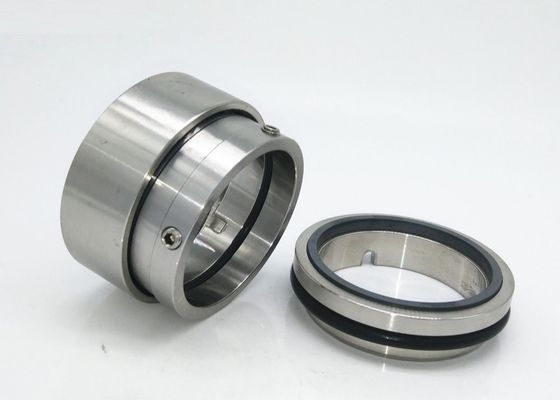

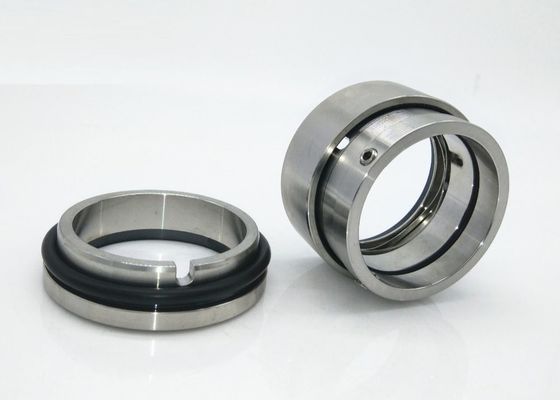

HJ977GN 펌프 메커니컬 실 1HJ977GN 펌프 메커니컬 실 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
