Single Spring Mechanical Seal 12D Mechanical Pump Shaft Seal Burgmann Bt-Rn. Nu

최소 주문 수량 : 5PC 가격 : Negotiated
포장 세부 사항 : 요구조건으로서의 박스 배달 시간 : 20-30days
지불 조건 : T/T, 웨스턴 유니온, L/C 공급 능력 : 100000PC/Month
원래 장소: 중국에서 만든 브랜드 이름: JR
인증: ISO9001 모델 번호: 120D

상세 정보

소재: 원문대로 FKM 자동차 CER NBR를 토하세요 기능: 오일 펌프, 물 펌프를 위해
운송 패키지: 상자 HS 코드: 848420090
사양: Burgmann Bt-Rn 인증서: ISO9001
종류: Roten Uniten 2 SEAL 용 기준: 기준
스타일: 기계적 실링 제품 이름: Burgmann Bt-Rn.NU 씰 Aesseal T03D Flowerve 42d SEAL LATTY T900D STERLING SU2 SEAL

제품 설명

Mechanical Pump Shaft Seal Mechanical Face Seal 120D Burgmann Bt-Rn. Nu Seal Aesseal T03D flowserve 42D Seal



Operational Conditions:



Temperature: -20ºC to +180ºC
Pressure: ≤2.5MPa
Speed: ≤15m/s
2. Materials:
Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, FKM, PTFE
Spring and Metal Parts: Steel
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


Performance Capabilities

120D mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
14mm to 100mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Pa




1. Features of structure:

Burgmann BT-RN.NU seal

Aesseal T03D

Flowserve 42D seal

Latty T900D seal

Roten UNITEN 2 seal

2.Our seals can replace the original seals.

3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.

4.Customized products and OEM is welcomed

5. 12 YEARS EXPERIENCE ,We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

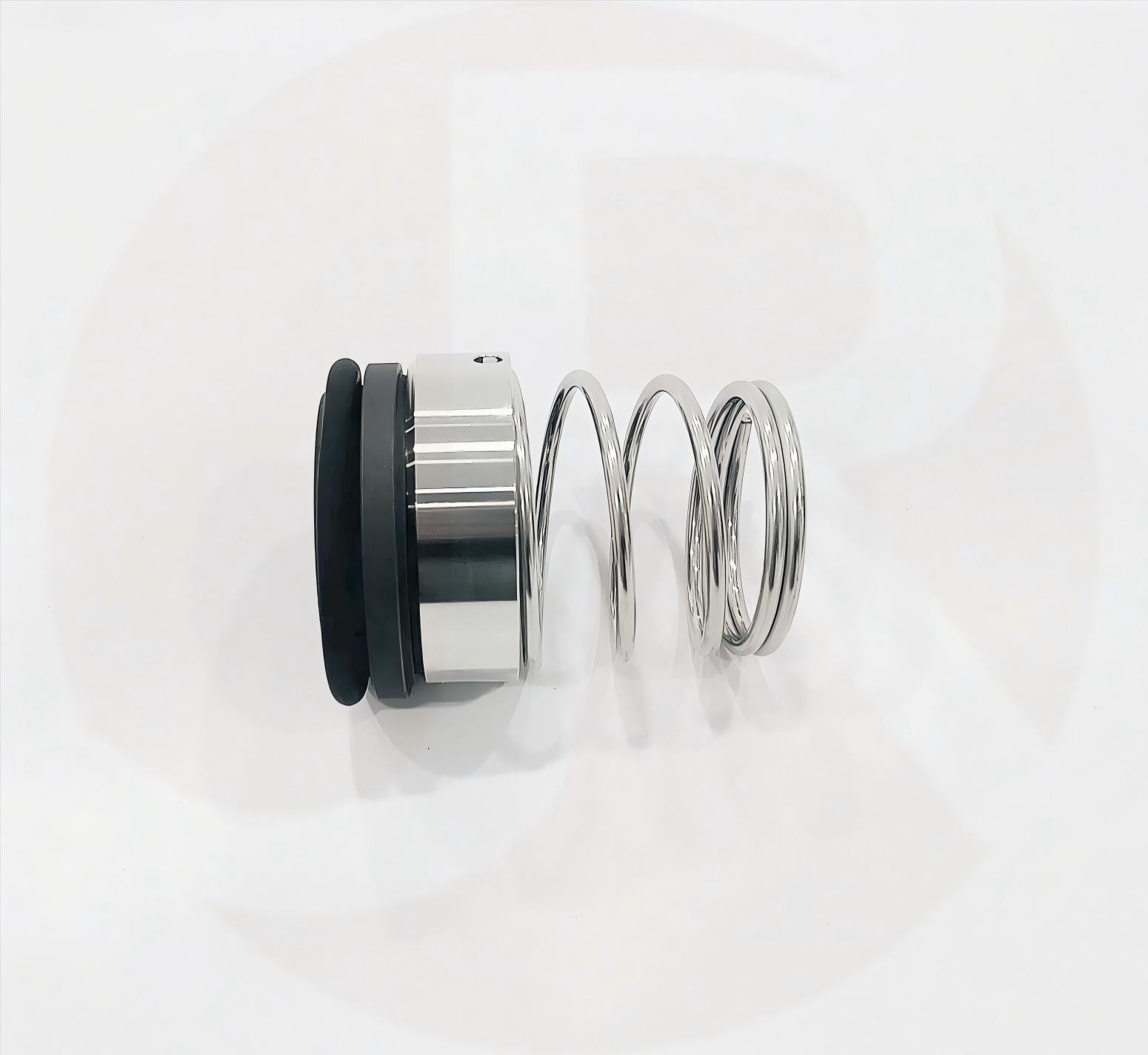

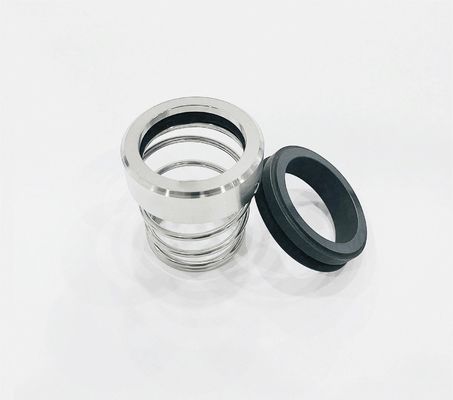

Single Spring Mechanical Seal 12D Mechanical Pump Shaft Seal Burgmann Bt-Rn. Nu 0

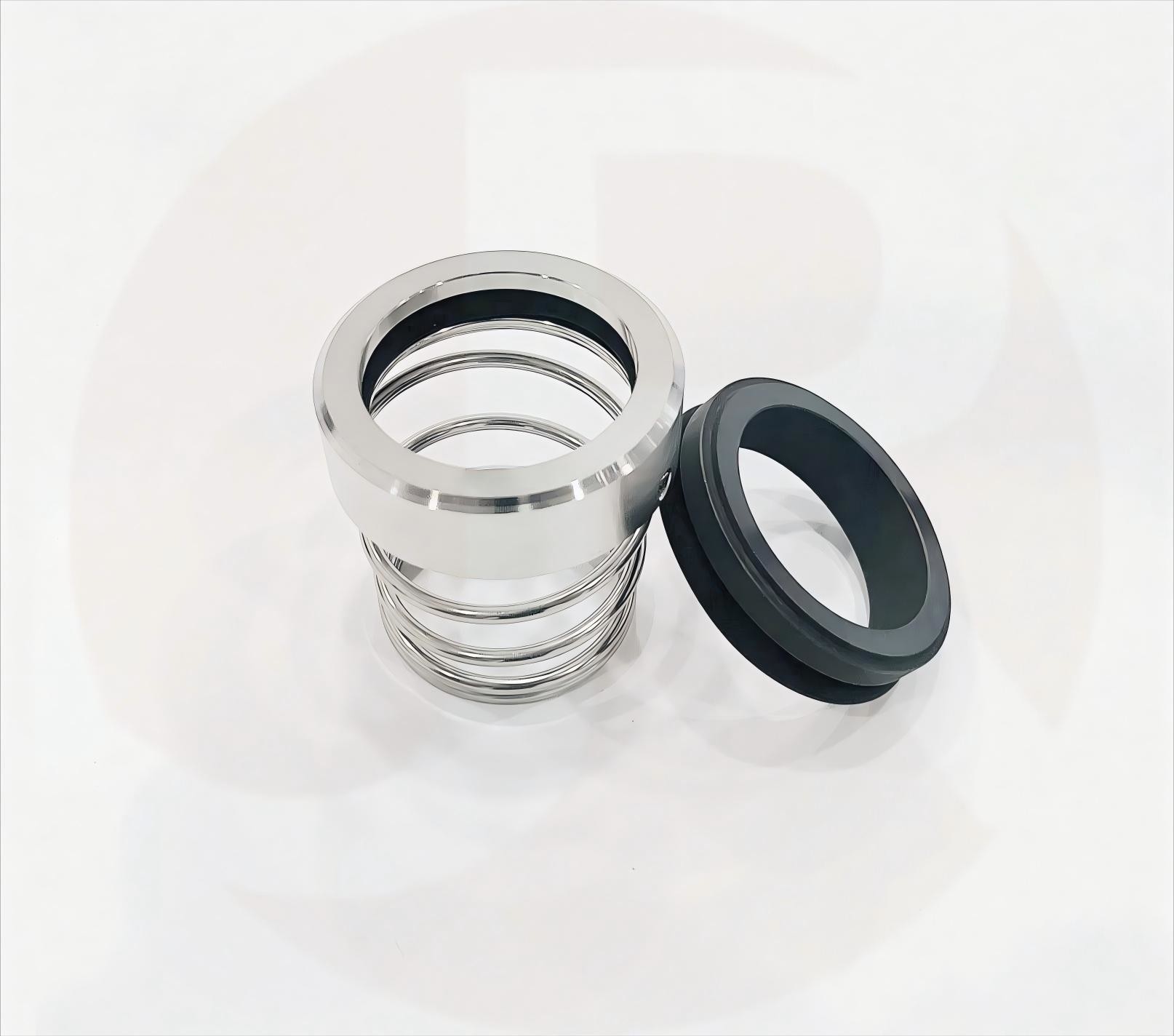

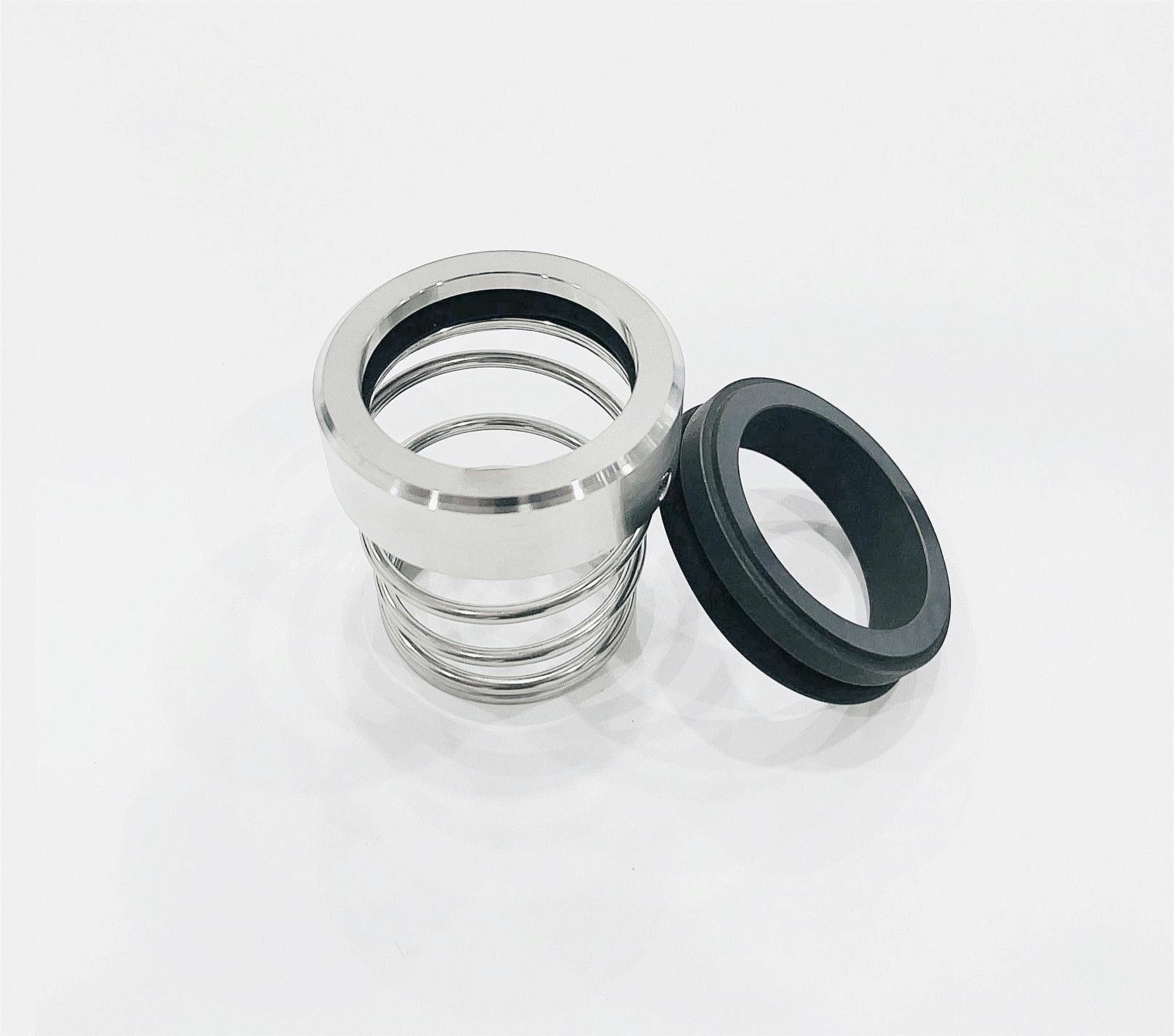

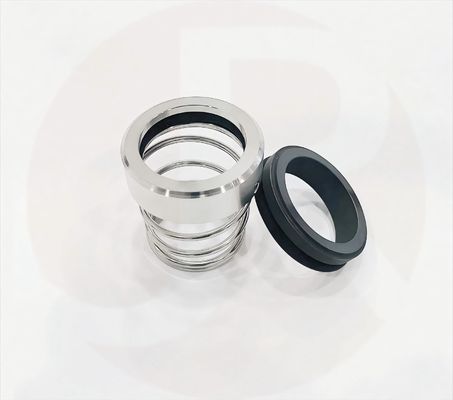

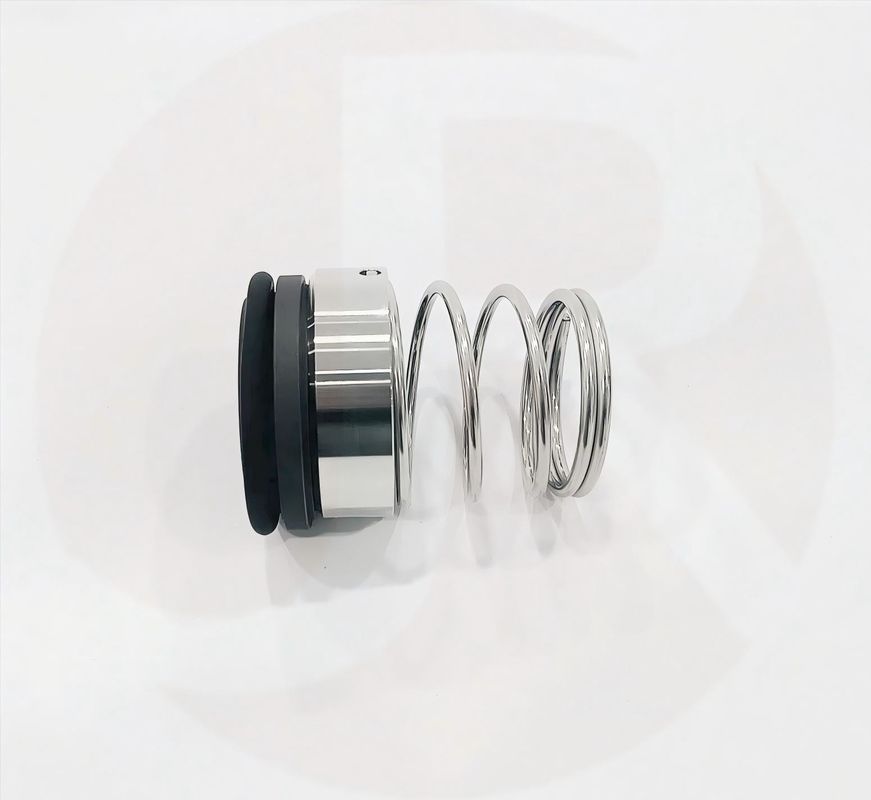

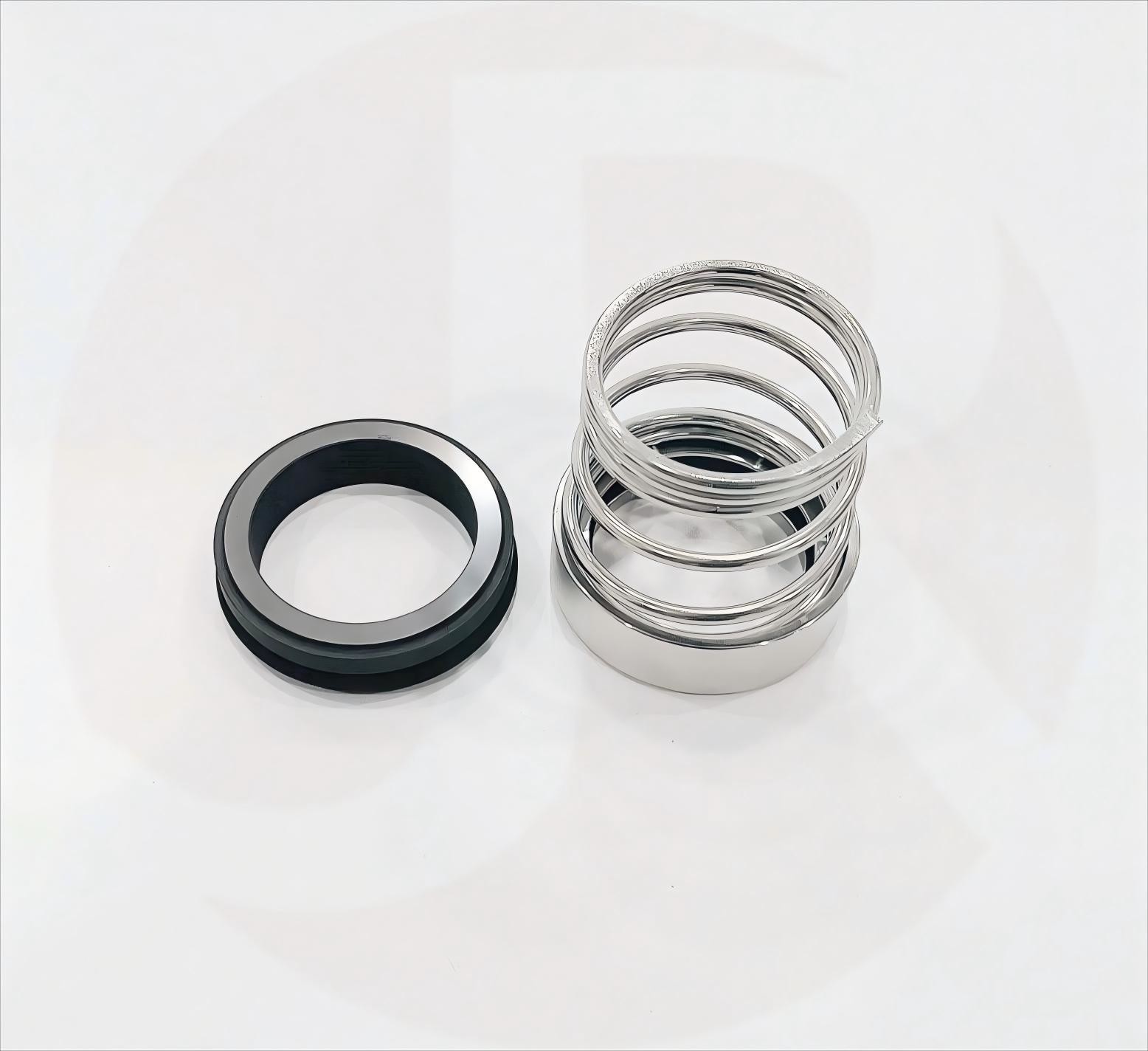

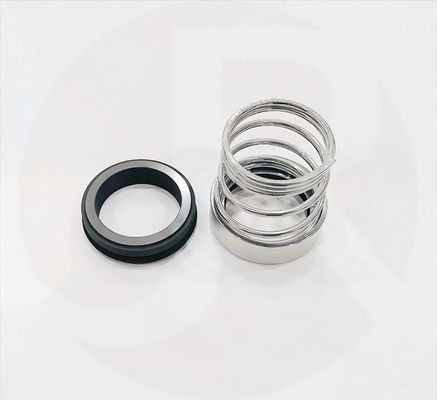

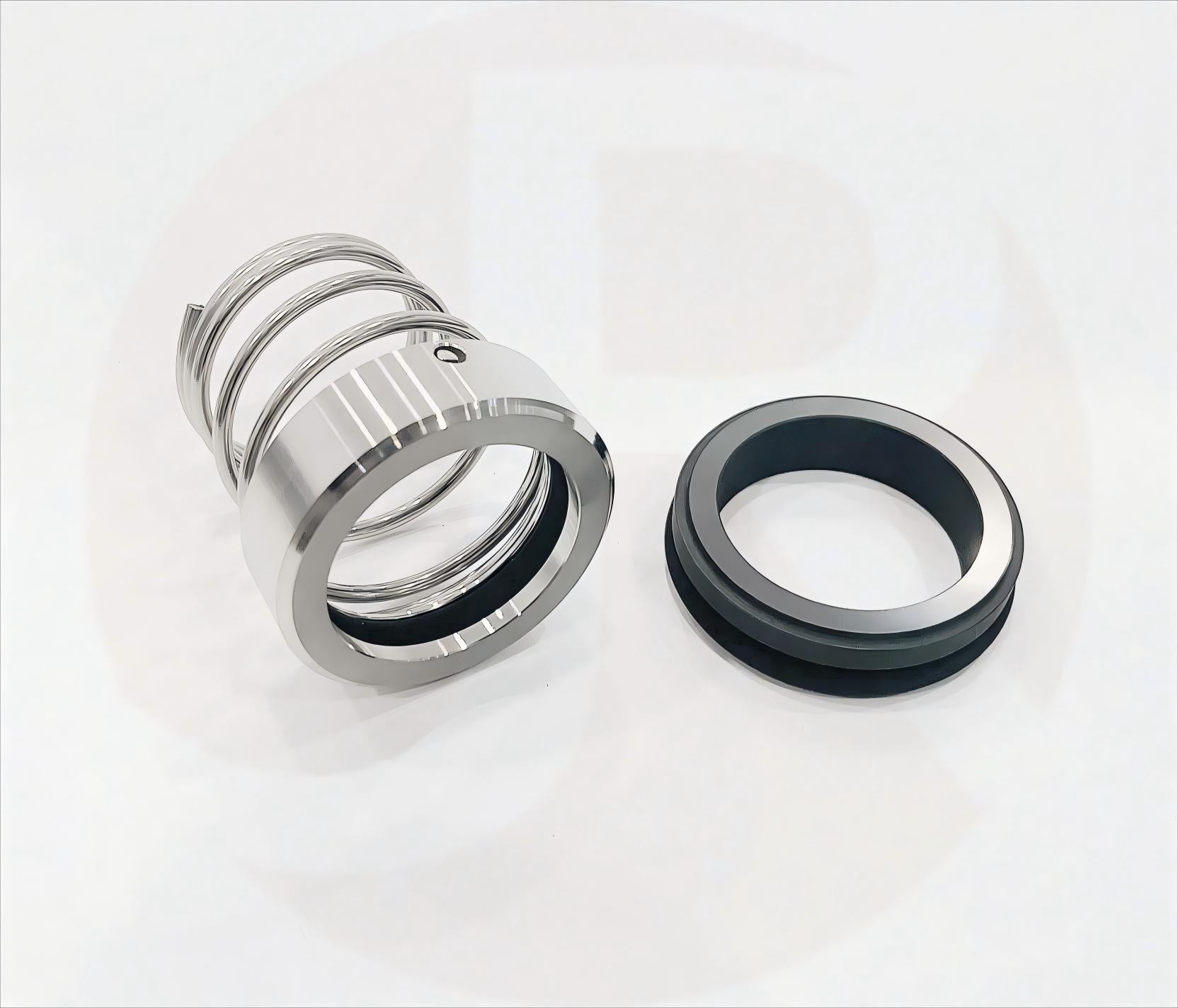

Single Spring Mechanical Seal 12D Mechanical Pump Shaft Seal Burgmann Bt-Rn. Nu 1Single Spring Mechanical Seal 12D Mechanical Pump Shaft Seal Burgmann Bt-Rn. Nu 2Single Spring Mechanical Seal 12D Mechanical Pump Shaft Seal Burgmann Bt-Rn. Nu 3Single Spring Mechanical Seal 12D Mechanical Pump Shaft Seal Burgmann Bt-Rn. Nu 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal,

Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal,

Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal,

Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal,

Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal,

Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps,

Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,

Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
