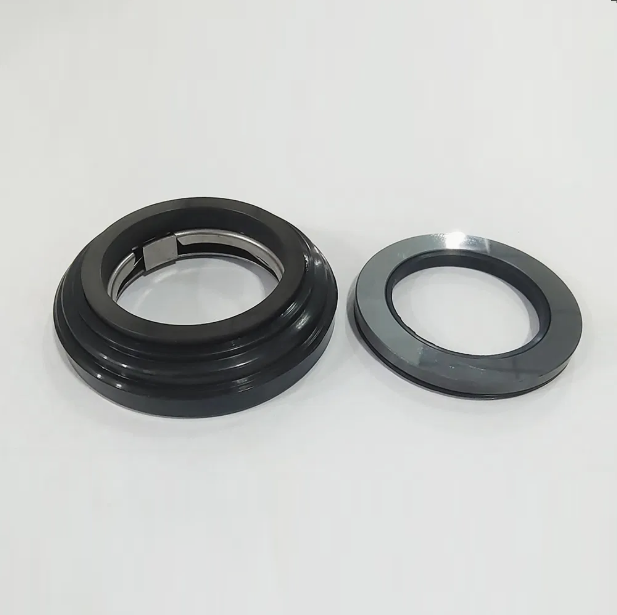

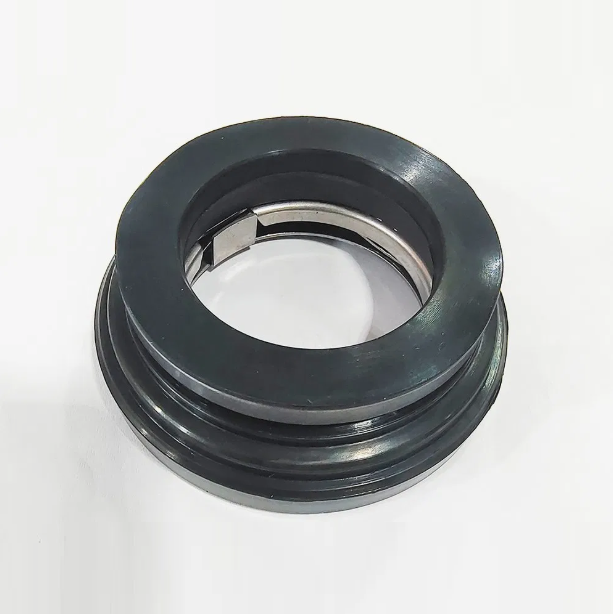

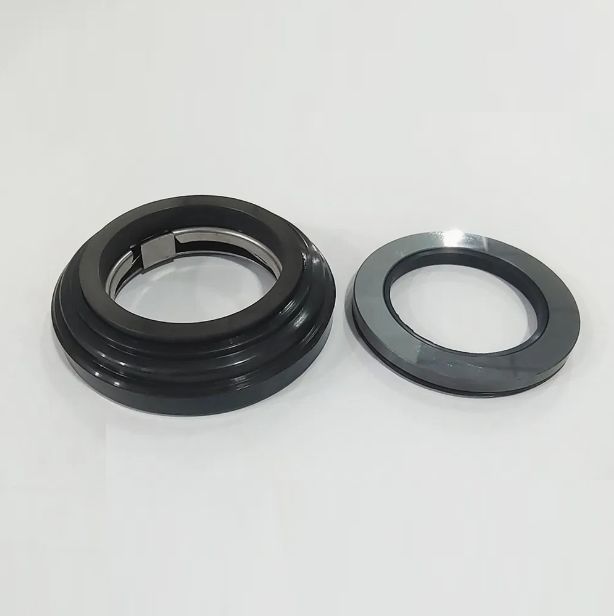

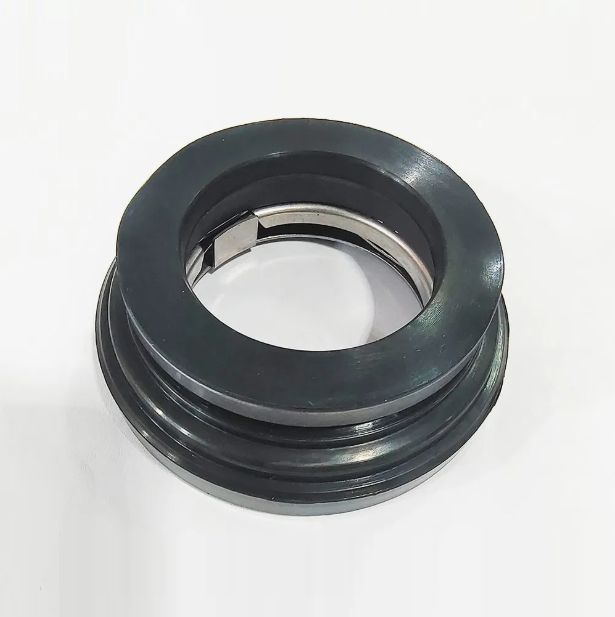

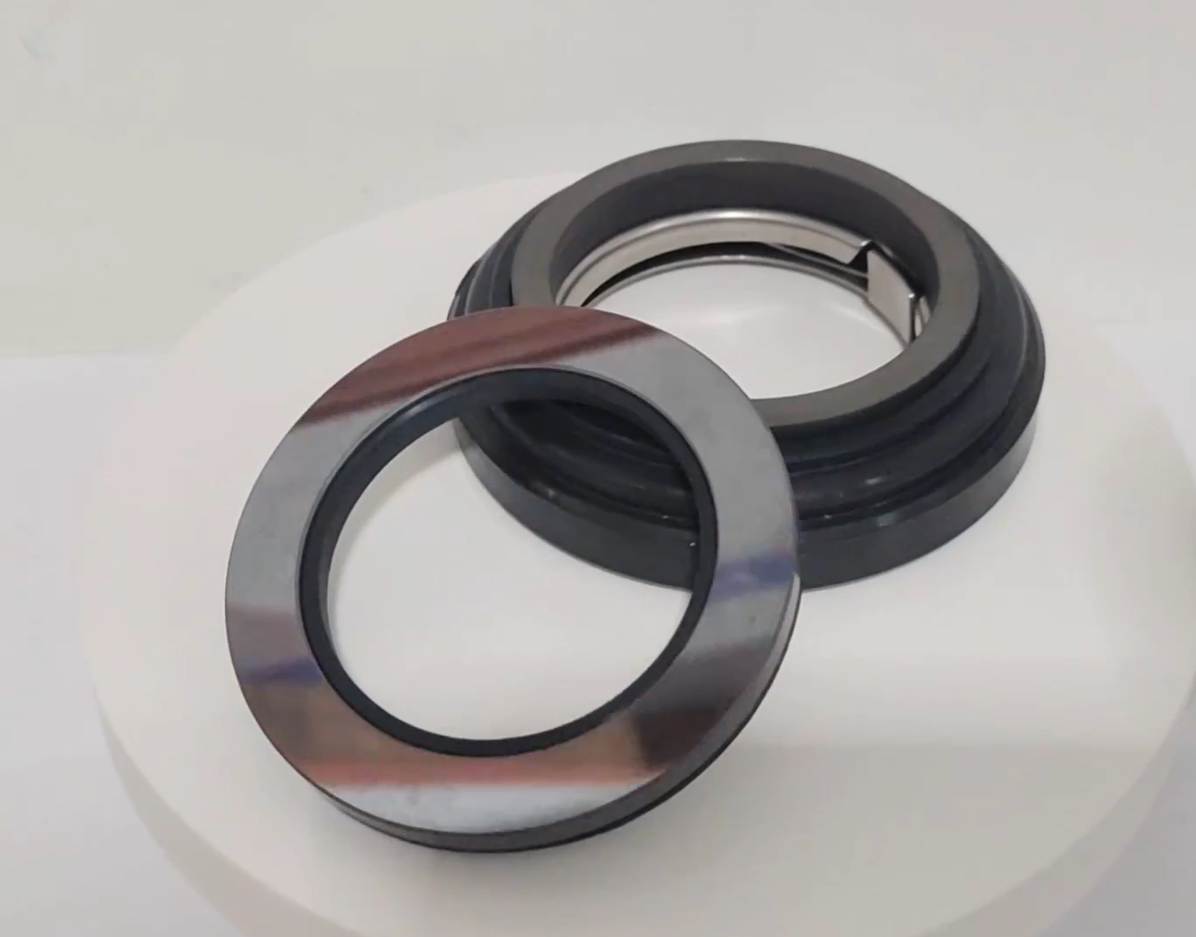

Accel Seal Ax5 or Ax05 Washing Machinanical Seal for Guilliver Counterface Gcs Gulliver Grandimpianti

최소 주문 수량 : 1pc 가격 : Negotiated
포장 세부 사항 : 요구 사항으로 상자 배달 시간 : 20-30 일
지불 조건 : T/T, Western Union, L/C. 공급 능력 : 1000pc/월
원래 장소: 중국에서 만들어졌습니다 브랜드 이름: JR
인증: iso9001 모델 번호: AX5 AX05

상세 정보

재료: TC TC FKM 기능: 오일 펌프, 워터 펌프
운송 패키지: 상자 HS 코드: 848420090
사양: AX5 AX05 기계식 씰 자격증: ISO9001
유형: AX5 AX05 펌프 기준: 기준
크기: Ax5 Ax05 John Crane 기계식 씰 이름: Ax5 Ax05 John Crane Seal

제품 설명

Accel Seal Ax5 or Ax05 Washing Machinanical Seal for Guilliver Garlock Alliance Primus Lavamac Counterface Gcs Gw Gulliver



Operational Conditions:

  1. Pressure: High Pressure Mechanical Seals
  2. Speed: High Speed Mechanical Seal
  3. Temperature: High Temperature Mechanical Seal
  4. Performance: Corrosion
  5. Standard: Specific Customization

       Materials:

       Rotary Ring Face: SiC/TC
       Stationary Ring Face: SiC/TC
       Elastomers: FKM/EPDM/FFKM
       Springs: SS304/SS316
       Metal Parts: SS304/SS316


Performance Capabilities:

mechanical seal Replacement for sale
Operational Condtions
Size
Material
Temperature:
-40℃ to220℃, depend on o-ring material
30-100MM
Face: TC
Pressure: Up to25 bar

Seat: TC
Speed:Up to 20m/s
Elastomer: FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS316, hastelloy C, A



It is interchangeable with model,AX5 or AX05.
It is rubber bellow and stationary seal;
Used for washing machine(laundry equipment), mixers and tanks, food processing, cosmetic or pharmaceutical products.
GR422190000300 , Grandimpianti SEAL RING 58-88-18 , Grandimpianti SEAL RING , Grandimpianti , Axial Joint ring, 58mm; For IPSO, Alliance, Primus, Lavamac

Accel Seal Ax5 or Ax05 Washing Machinanical Seal for Guilliver Counterface Gcs Gulliver Grandimpianti 0Accel Seal Ax5 or Ax05 Washing Machinanical Seal for Guilliver Counterface Gcs Gulliver Grandimpianti 1



Accel Seal Ax5 or Ax05 Washing Machinanical Seal for Guilliver Counterface Gcs Gulliver Grandimpianti 2Accel Seal Ax5 or Ax05 Washing Machinanical Seal for Guilliver Counterface Gcs Gulliver Grandimpianti 3Accel Seal Ax5 or Ax05 Washing Machinanical Seal for Guilliver Counterface Gcs Gulliver Grandimpianti 4Accel Seal Ax5 or Ax05 Washing Machinanical Seal for Guilliver Counterface Gcs Gulliver Grandimpianti 5Accel Seal Ax5 or Ax05 Washing Machinanical Seal for Guilliver Counterface Gcs Gulliver Grandimpianti 6



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
