홈 제품 소개그룬트포스는 기계적 실링을 펌핑합니다Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM

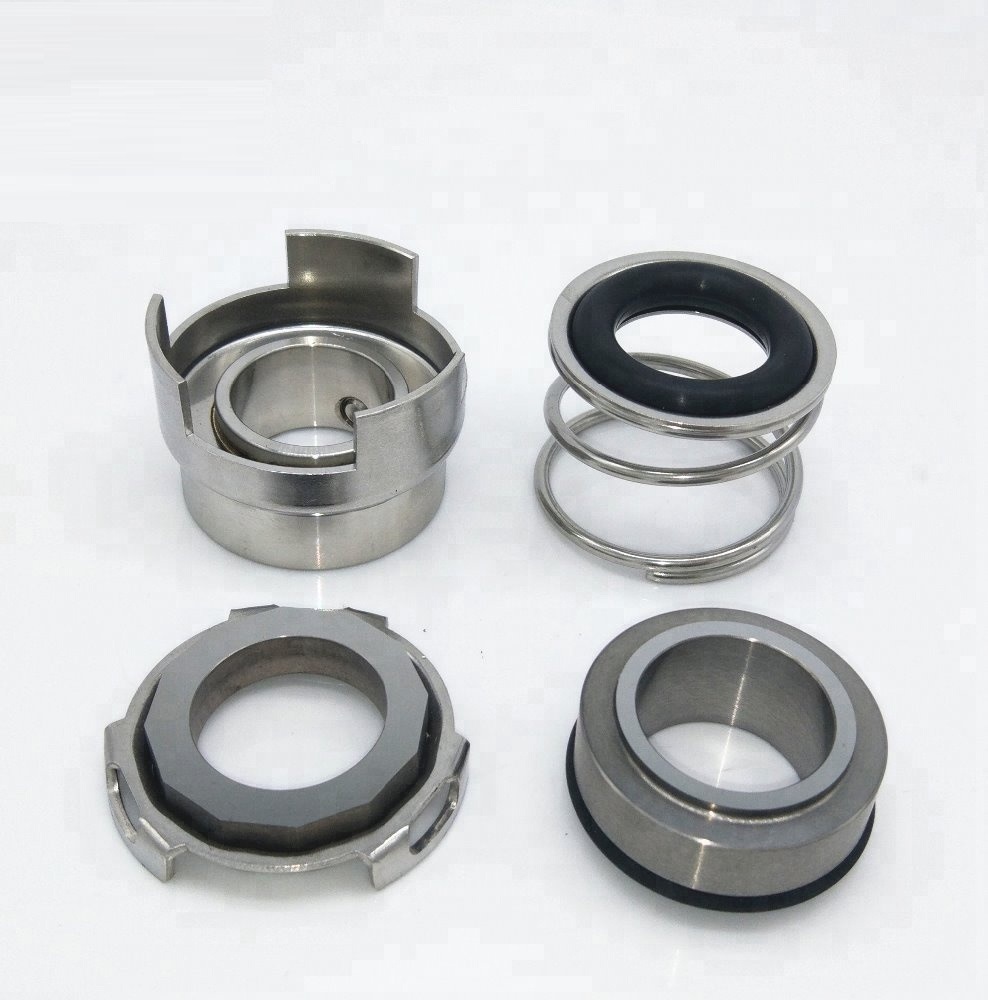

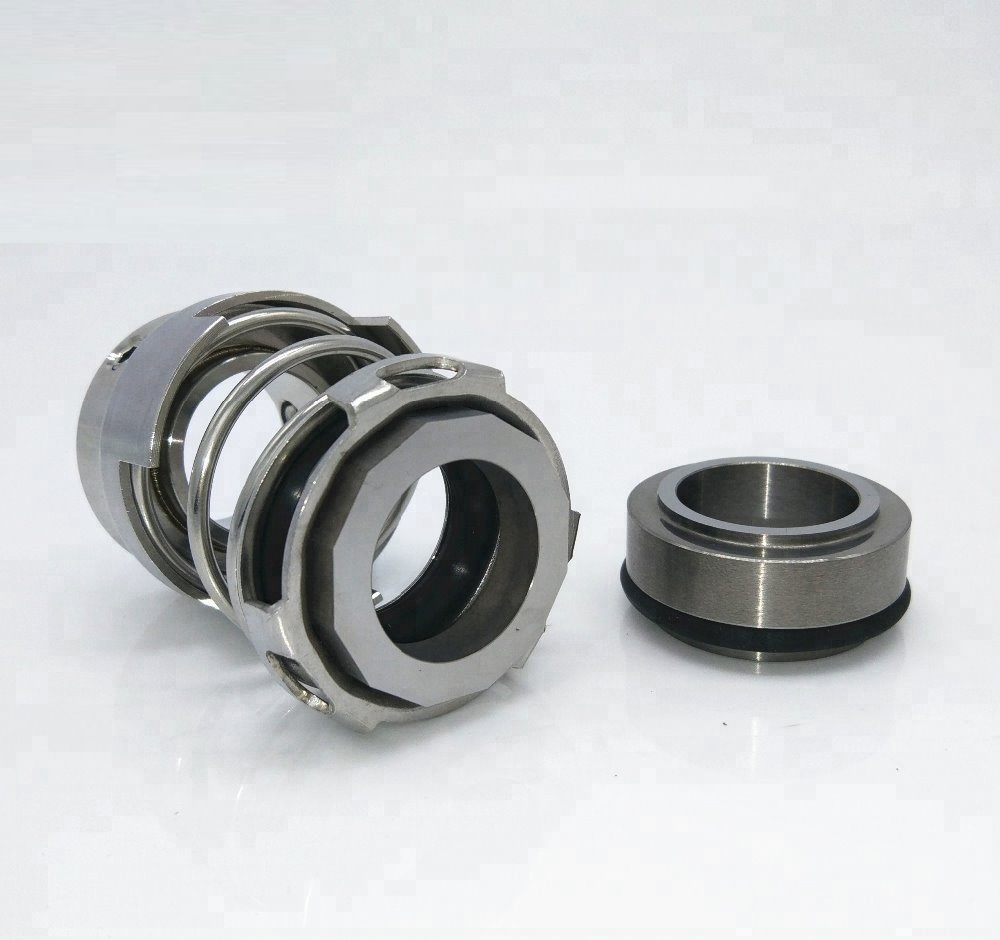

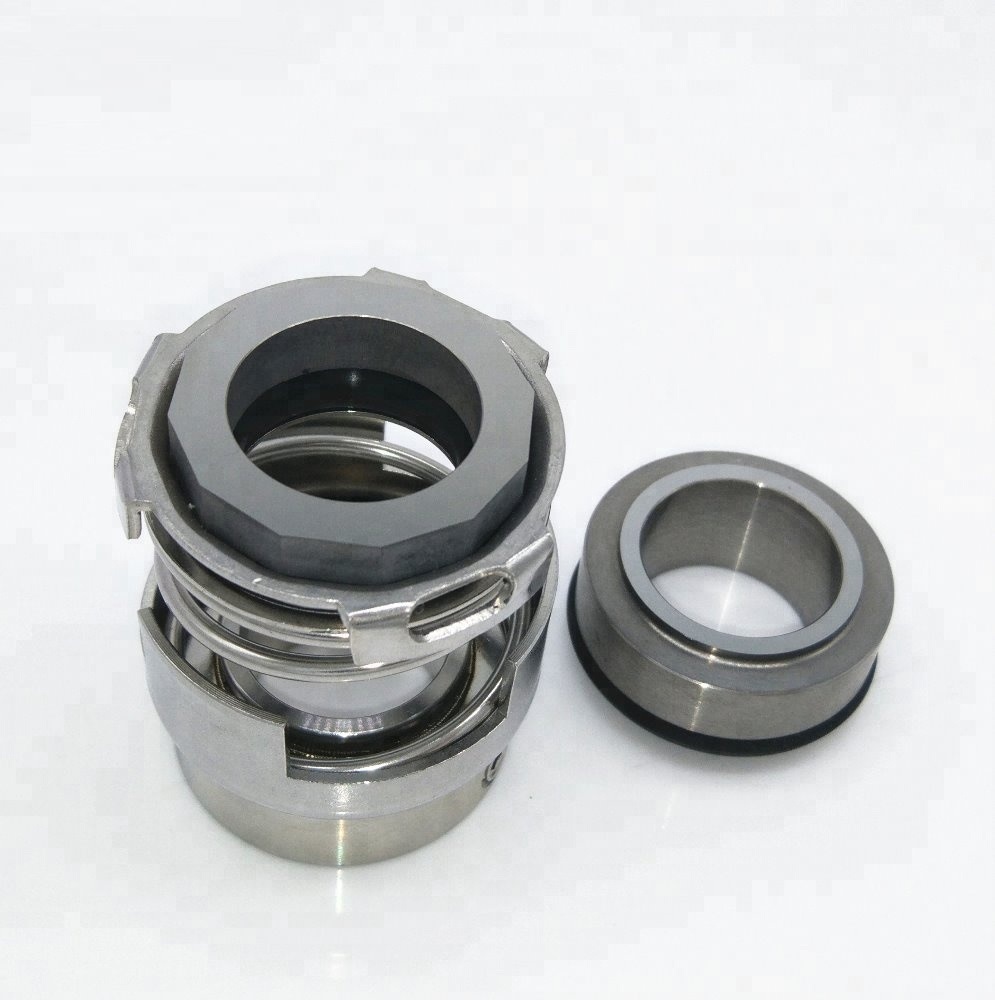

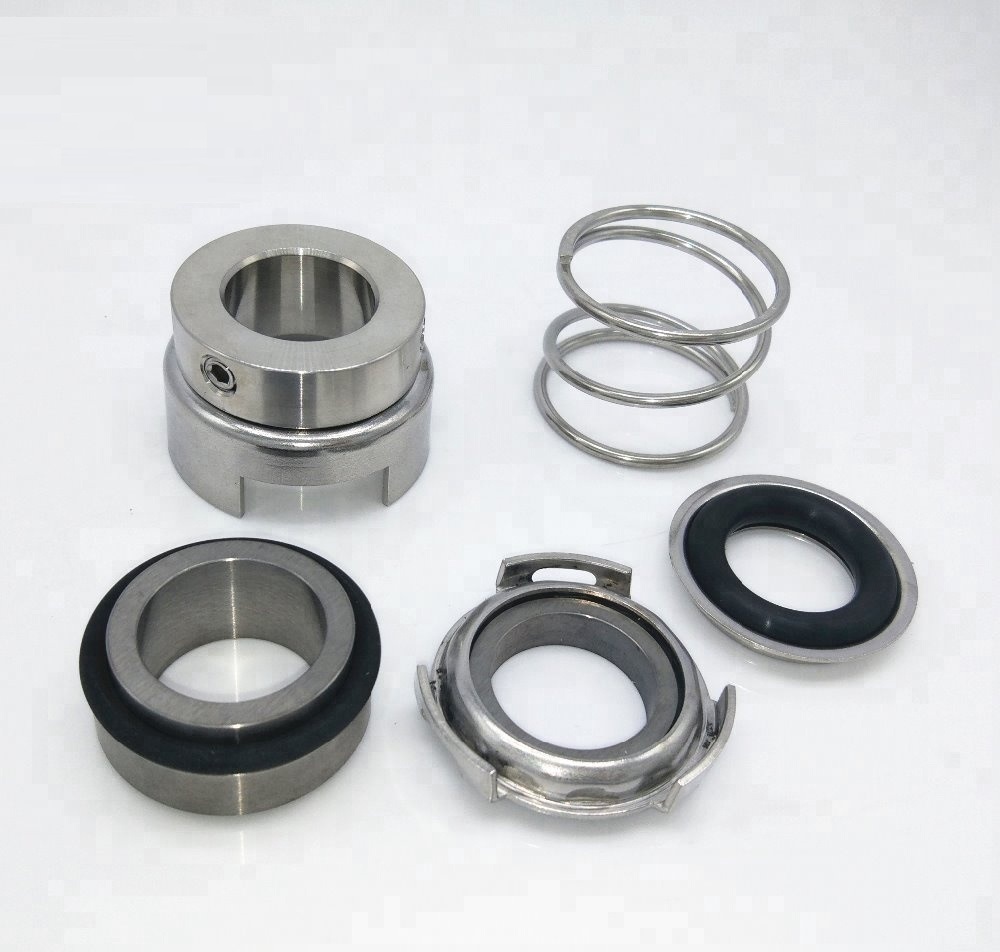

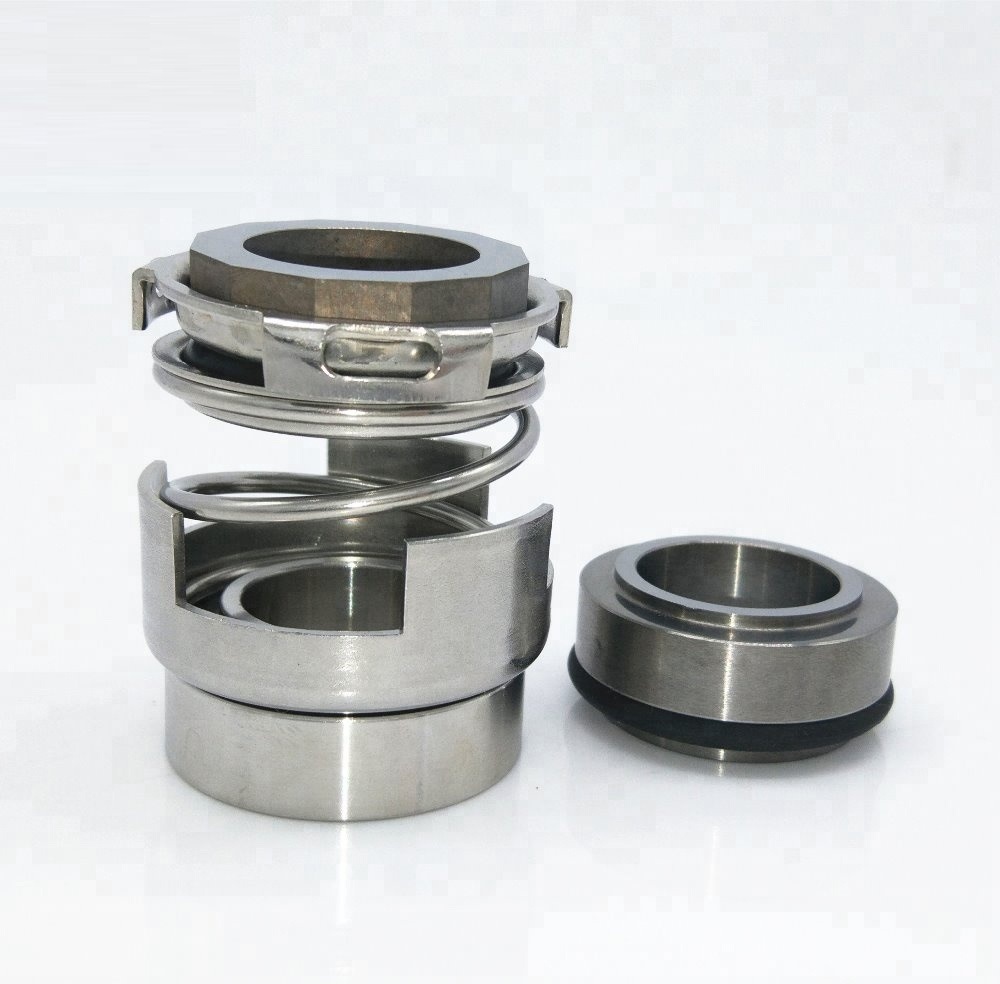

Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM
Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM
Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM
지금 연락

Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM

최소 주문 수량 : 5pc 가격 : Negotiated
포장 세부 사항 : 요구 사항으로 상자 배달 시간 : 20-30일
지불 조건 : T/T, Western Union, L/C. 공급 능력 : 100000pc/월
원래 장소: 중국산 브랜드 이름: JR
인증: iso9001 모델 번호: 주니어 GLF-7(G04-22MM)

상세 정보
스타일: 기계적 밀봉 재료: TC TC FKM
크기: G04-22MM 기능: 오일 펌프, 워터 펌프
사양: GrOndfos 펌프 기계적 씰 Hs 코드: 848420090
자격증: ISO9001 유형: GrOndfos 펌프 22MM용)
기준: 기준 온도: 탄성체에 의존한 -30C 내지 200C

제품 설명

Mechanical Seal G04-22mm TC Material For Grondfos Water Pump Mechanical Shaft Seals
Mechanical Seal G04-22mm For Grondfos Water Pump Mechanical Shaft Seals


Description:



Operational Conditions:

  1. Temperature: -20ºC to +180ºC
  2. Pressure: ≤2.5MPa
  3. Speed: ≤15m/s
  4. G06-22MM

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


Performance Capabilities



Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
22MM
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

Mechanical seal for pump GrOndfos H, C, B, A, SE, SV, Sarlin S1,S2,S3, SA, SV, Hilge, Contra, EURO-Hygia, Hygiana, Sipla, NM, NME, NP, NPE
Shaft seals for borehole and well pumps GrOndfos SP, SPA
Shaft seals for heating pumps GrOndfos TP, TPD, TPE, TPED, LM, LP
For projecting and monoblock pumps GrOndfos NBG, NBGE, NKG, NKGE, NK, NB
Shaft seals for monoblock horizontal centrifugal pumps GrOndfos
Shaft seals for centrifugal horizontal multistage pumps GrOndfos CM/СМЕ, CH, CHI, CHIU, CHIE, CHN
Shaft seals for single stage circulation pumps Grundfos CLM, CDM, CLP
Mechanical seals for centrifugal multiatage vertical pumps GrOndfos CR, CRI, CRN with electrically operated Grundfos CRE, CRIE, CRNE:
CR1s, CR1, CR2, CR3, CR4, CR5, CR8, CR10, CR15, CR16, CR20, CR32, CR45, CR64, CR90
CRN1s, CRN1, CRN2, CRN3, CRN4, CRN5, CRN8, CRN10, CRN15, CRN16, CRN20, CRN32, CRN45, CRN64, CRN90
You can find all types of mechanical seals for the pump Grundfos - HQQE, HQQV, CVBE, CVBV, AQQV, AQQE, KUBV, HUUE, BAQE, GQQE, AUUE, RUUE, BUBE, HQQE, HQQV, BAQE, BUBE, BBUE, BQQE, GQQE LP, BUUE, BUUV, CVBE, CVBV, BQQV, BUBE, BQQE.

The construction of mechanical seal consists mainly of two parts: rotating and stationary. Stationary part, as a rule, is a ring, which is fixed on pump casing . Rotating part is installed on the shaft and tightened with a help of spring to the stationary part.

Pressurizing by mechanical seal is achieving with a help of secondary seals (bellows, rubber gasket) and friction couple.

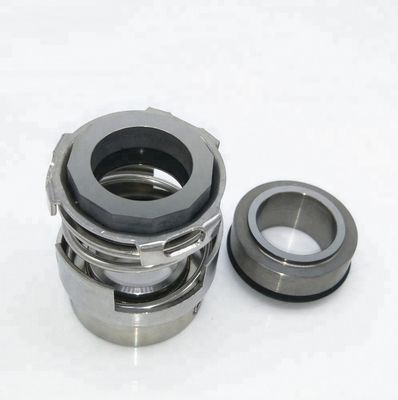

Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM 0

Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM 1Grundfos Mechanical Seal G04-22 GLF-E 22MM Tungsten Carbide FKM 2



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
