82 기계 표면 밀봉 16 밀리미터 물결 단일의 스프링 밀봉을 타이핑하세요
담당자 : Davis
WhatsApp : +8618130083767
|
상세 정보 |
|||
| 재료: | sic sic fkm cer car nbr | 기능: | 오일 펌프, 워터 펌프 |
|---|---|---|---|
| 운송 패키지: | 상자 | Hs 코드: | 848420090 |
| 사양: | 다중 스프링 메커니컬 실 | 자격증: | ISO9001 |
| 유형: | 기계적 실링 491 | 표준 또는 비표준: | 기준 |
| 스타일: | 491 체스터톤 기계적 실링 | 크기: | 18-100mm |
제품 설명

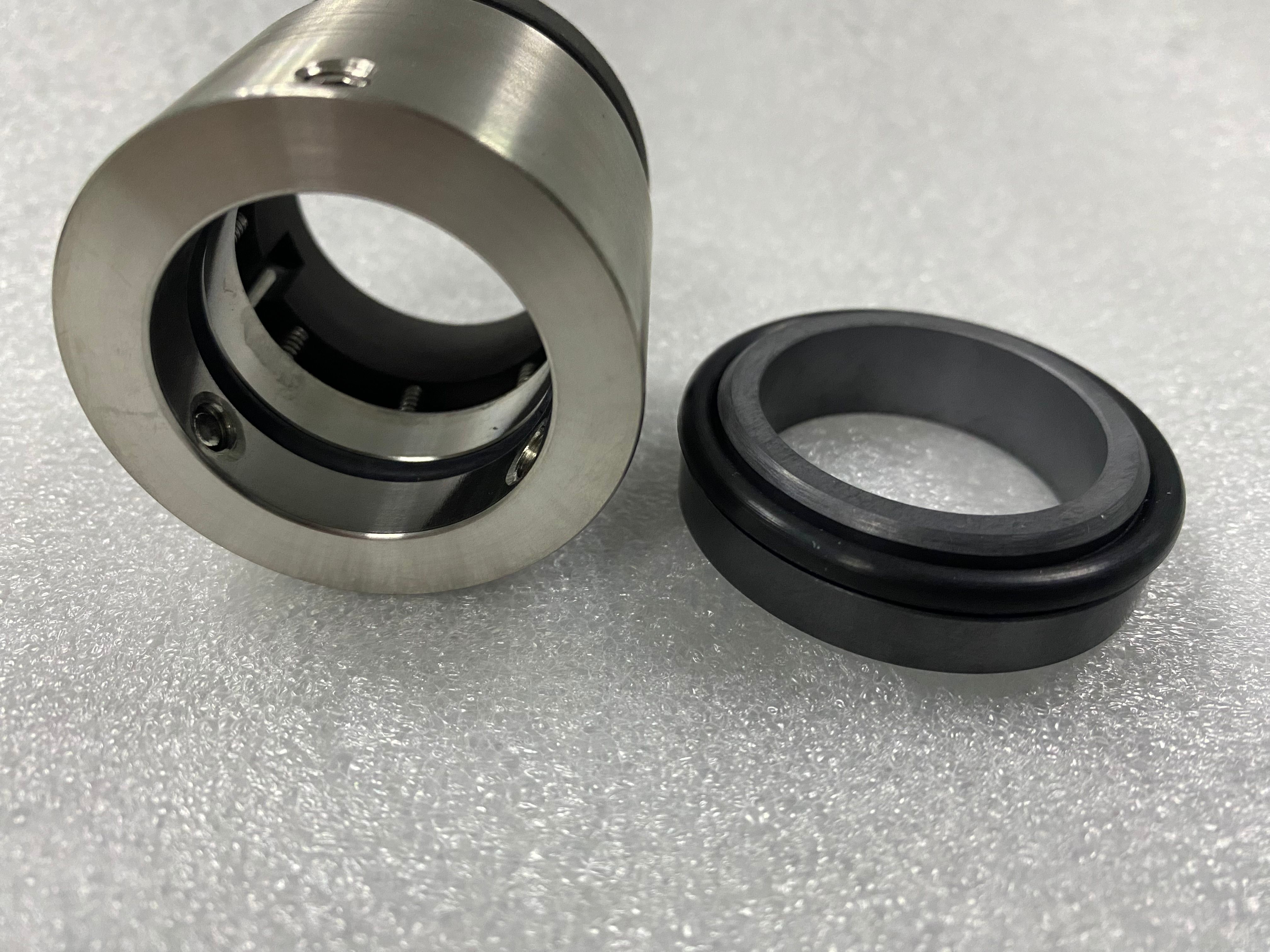

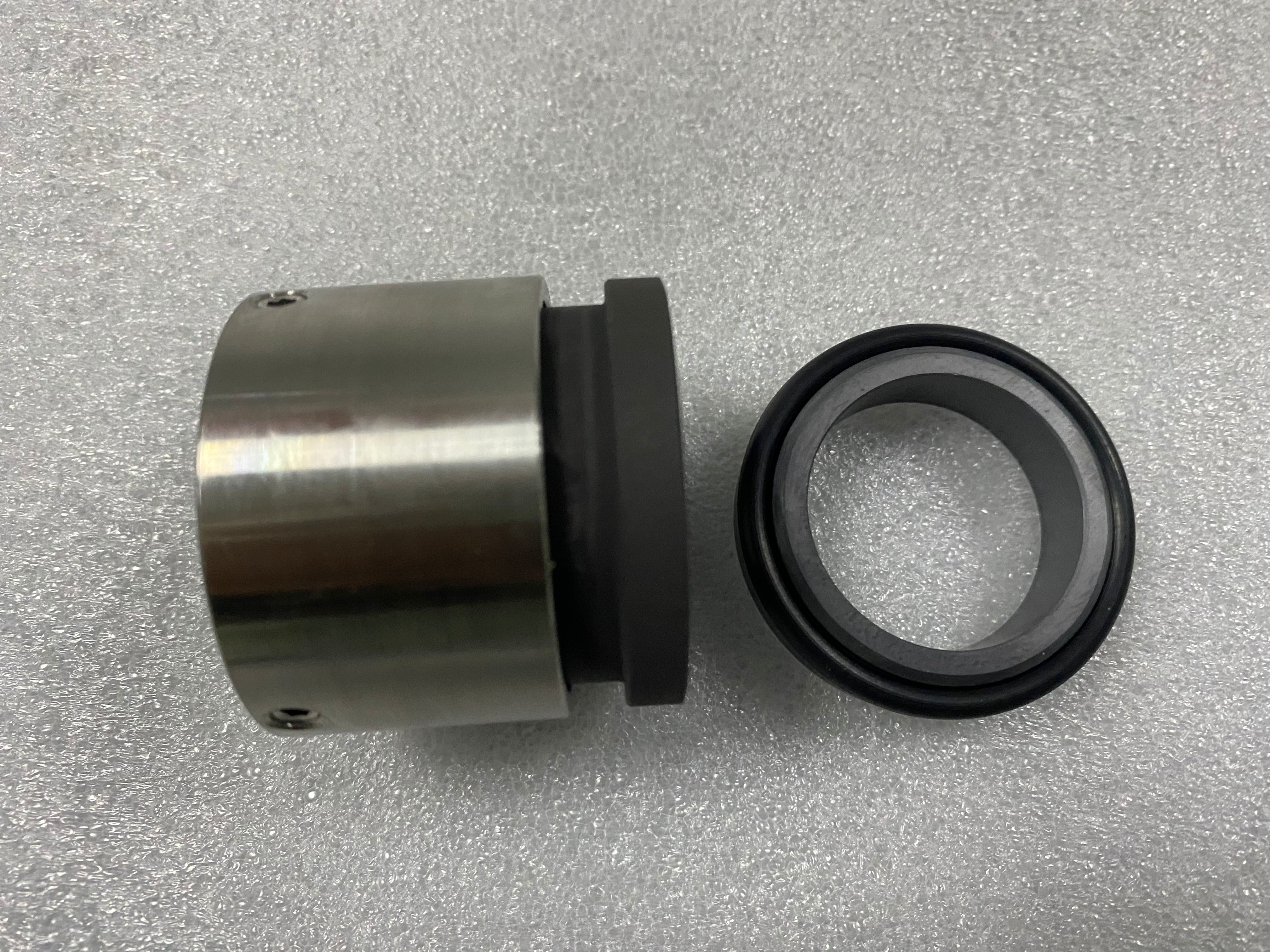

Mechanical Seals 491 Multi Spring Chesterton Balanced O Ring Seal For Water Pumps
Operations Conditions:
Materials:
Performance Capabilities:
|
Temperature
|
-20℃ to 180℃, dependent on the elastomer
|
|
Pressure
|
Up to 1MPA
|
|
Speed
|
Up to 10 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
18-100
|
|
Brand
|
JR
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Ceramic, SiC, TC
|
|
Elastomer
|
NBR, EPDM, FKM etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
| Packing | Individual packing ,1 pc in 1 small box is available as well |
491 can replace CHESTERTON 491,which is widely used for industrial pumps. The normal material combination include resin carbon/SIC/NBR/ss304,sic/sic/NBR/ss304 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
![]()
![]()
![]()
![]()
![]()
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
