| 최소 주문 수량 : | 5개 | 가격 : | Negotiated |
|---|---|---|---|
| 포장 세부 사항 : | 요구 사항으로 상자 | 배달 시간 : | 20-30일 |
| 지불 조건 : | T/T, 서부 동맹, L/C | 공급 능력 : | 100000PC/월 |
| 원래 장소: | 중국산 | 브랜드 이름: | JR |
|---|---|---|---|
| 인증: | ISO9001 | 모델 번호: | 59U |
|
상세 정보 |
|||
| 재료: | 원문대로 FKM 자동차 CER NBR를 토하세요 | 기능: | 오일펌프, 워터펌프용 |
|---|---|---|---|
| 운송 패키지: | 상자 | HS코드: | 848420090 |
| 사양: | 존 크레인 타입 59U | 자격증: | ISO9001 |
| 유형: | 59U | 기준: | 기준 |
| 스타일: | 기계적 밀봉 | 대사: | 버그만 BT-C56.KU 밀봉 존 크레인 T59U는 아에스시일 M03 밀봉 스털링 259 밀봉을 밀봉합니다 |
제품 설명

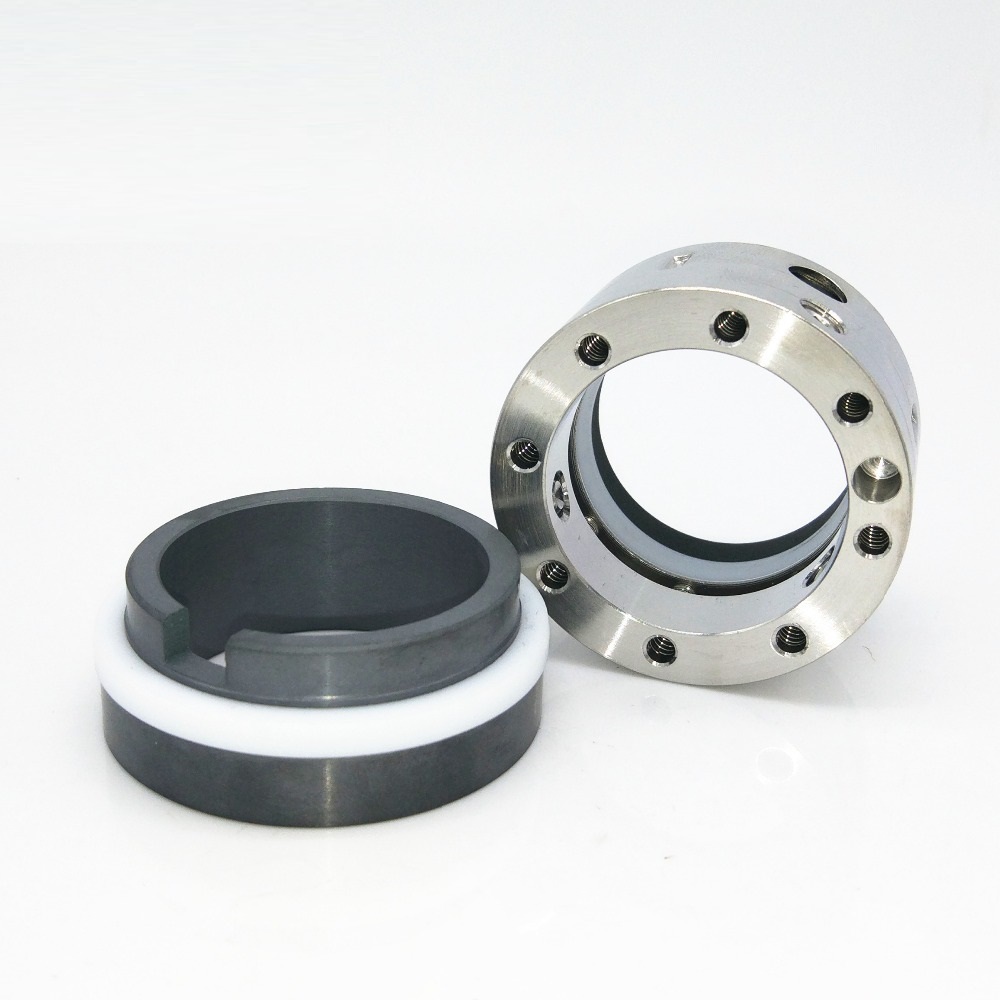

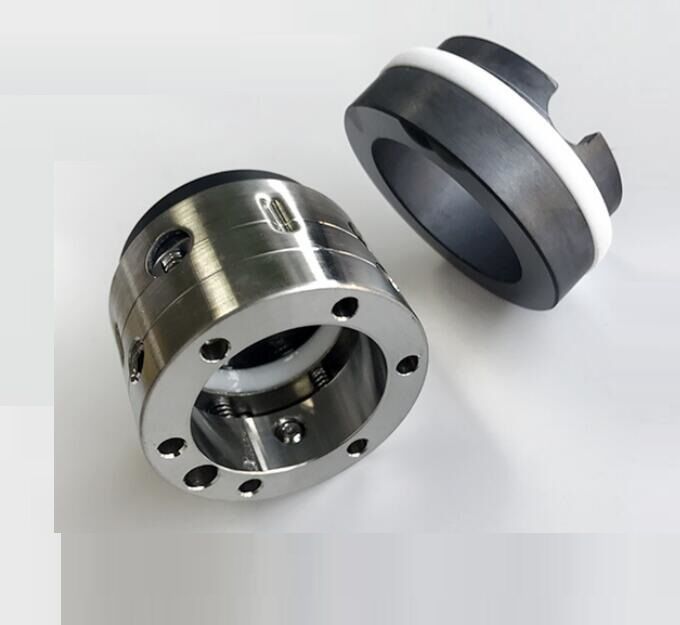

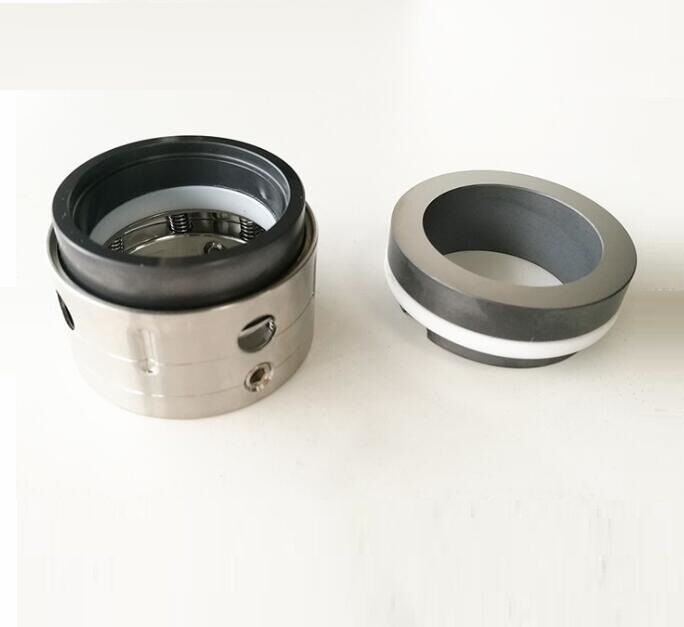

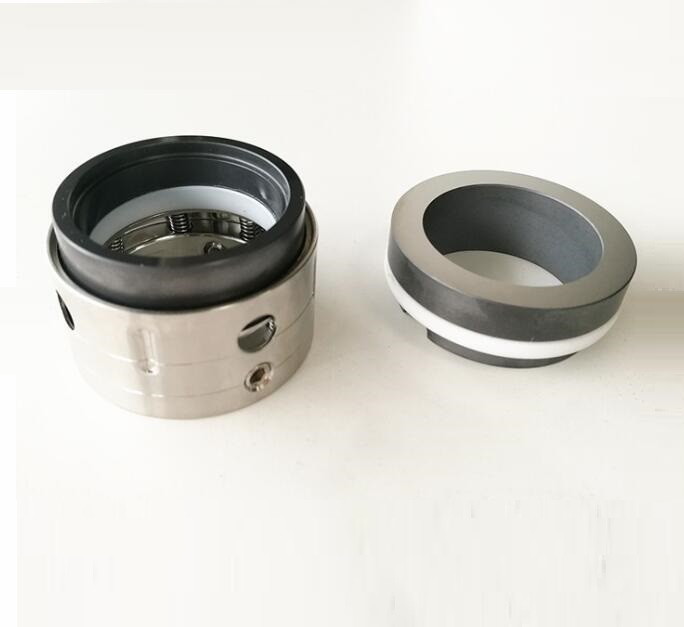

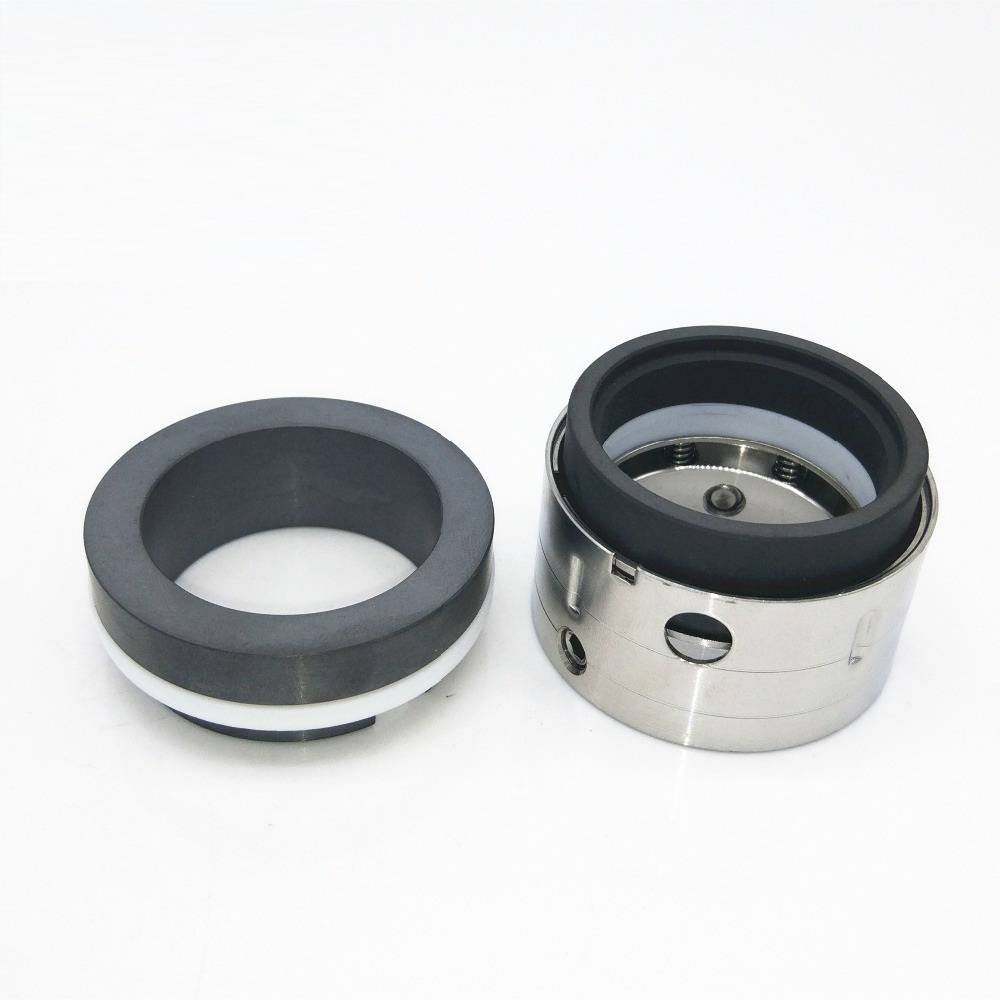

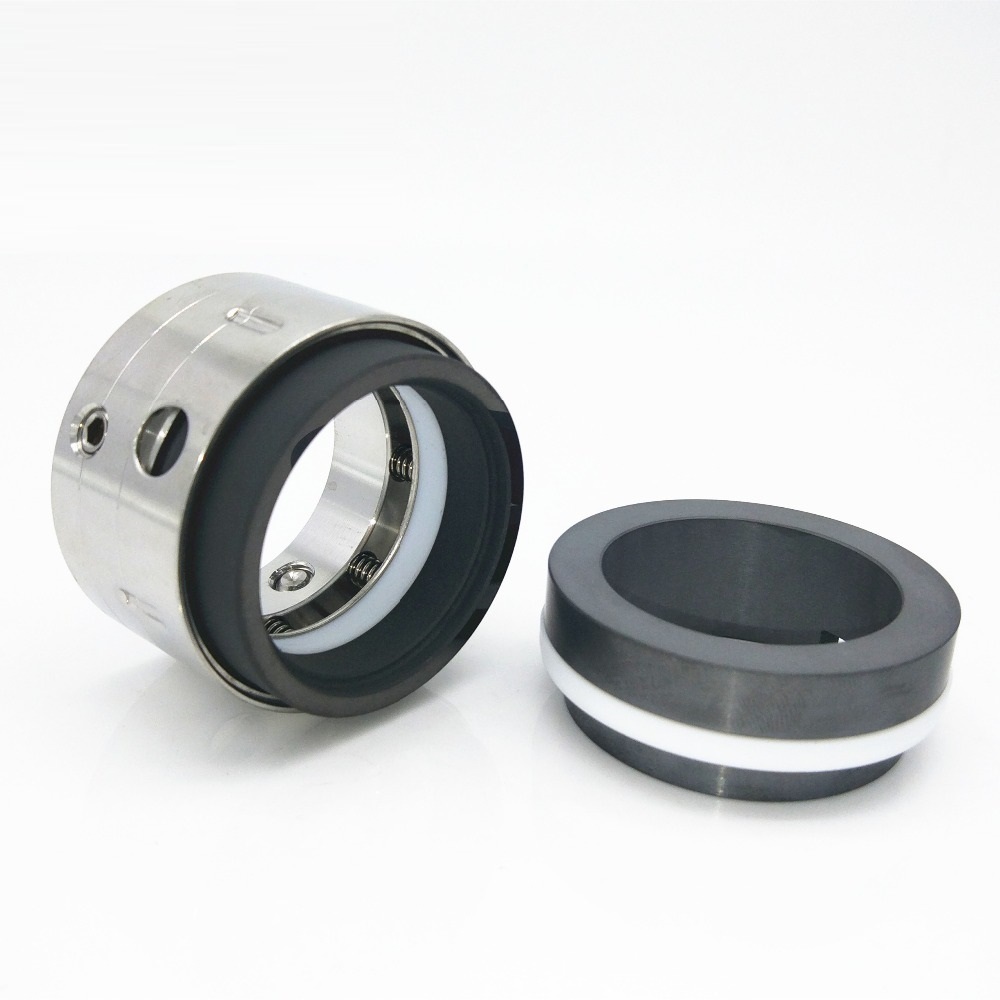

Mechanical Seal 59U PTFE Wedge Seal Multi Spring Pump Seal For John Crane 59U Burgmann BT-C56.KU Seal Aesseal M03 Seal
Operational Conditions:
59U:John Crane Type 59U,Burgmann BT-C56.KU, AES M03,Sterling 259,VULCAN 1659
Structure Description:
Equivalent to John Crane Type 59U,Burgmann BT-C56.KU, AES M03,Sterling 259,VULCAN 1659
Multiple spring , unbalanced seal
Operating Limits:
Temperature:-40---250℃
Speed: 15m/s
Pressure: 12bar
Standard size: 14-100mm
Materials:
Seal ring: Car,Sic,Ssic,TC,Ceramic
Secondary seal: NBR,EPDM,FKM, etc.
Spring and Metal parts:304,316,HAST.C
General chemical applications, oil refining, petrochemical, and pharmaceutical industries.
Suitable for use with corrosive fluids and for cryogenic and high-temperature applications.
By choosing suitable component materials, the seals can be adapted to operate with a wide range of liquids and operating conditions.
Performance Capabilities
Description:
1.Replacement to:
Burgmann BT-C56.KU seal
John Crane T59U seal
Aesseal M03 seal
Sterling 259 seal
2. Our seals can replace the original seals.
3.Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc
4.Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
5.OEM and Customized products is welcomed.
6. Factory Price,High Quality ,Fast Delivery and Best Sevice.
| 59U Dimensions(mm) | |||||||
| Size | d | D3 | D6 | D7 | L3 | L4 | L8 |
| 14 | 14 | 24 | 21 | 25 | 23.0 | 12.0 | 18.5 |
| 16 | 16 | 26 | 23 | 27 | 23.0 | 12.0 | 18.5 |
| 18 | 18 | 32 | 27 | 33 | 24.0 | 13.5 | 20.5 |
| 20 | 20 | 34 | 29 | 35 | 24.0 | 13.5 | 20.5 |
| 22 | 22 | 36 | 31 | 37 | 24.0 | 13.5 | 20.5 |
| 24 | 24 | 38 | 33 | 39 | 26.7 | 13.3 | 20.3 |
| 25 | 25 | 39 | 34 | 40 | 27.0 | 13.0 | 20.0 |
| 28 | 28 | 42 | 37 | 43 | 30.0 | 12.5 | 19.5 |
| 30 | 30 | 44 | 39 | 45 | 30.5 | 12.0 | 19.0 |
| 32 | 32 | 46 | 42 | 48 | 30.5 | 12.0 | 19.0 |
| 33 | 33 | 47 | 42 | 48 | 30.5 | 12.0 | 19.0 |
| 35 | 35 | 49 | 44 | 50 | 30.5 | 12.0 | 19.0 |
| 38 | 38 | 54 | 49 | 56 | 32.0 | 13.0 | 20.0 |
| 40 | 40 | 56 | 51 | 58 | 32.0 | 13.0 | 20.0 |
| 43 | 43 | 59 | 54 | 61 | 32.0 | 13.0 | 20.0 |
| 45 | 45 | 61 | 56 | 63 | 32.0 | 13.0 | 20.0 |
| 48 | 48 | 64 | 59 | 66 | 32.0 | 13.0 | 20.0 |
| 50 | 50 | 66 | 62 | 70 | 34.0 | 13.5 | 20.5 |
| 53 | 53 | 69 | 65 | 73 | 34.0 | 13.5 | 20.5 |
| 55 | 55 | 71 | 67 | 75 | 34.0 | 13.5 | 20.5 |
| 58 | 58 | 78 | 70 | 78 | 39.0 | 13.5 | 20.5 |
| 60 | 60 | 80 | 72 | 80 | 39.0 | 13.5 | 20.5 |
| 63 | 63 | 83 | 75 | 83 | 39.0 | 13.5 | 20.5 |
| 65 | 65 | 85 | 77 | 85 | 39.0 | 13.5 | 20.5 |
| 68 | 68 | 88 | 81 | 90 | 39.0 | 13.5 | 20.5 |
| 70 | 70 | 90 | 83 | 92 | 45.5 | 14.5 | 21.5 |
| 75 | 75 | 95 | 88 | 97 | 45.5 | 14.5 | 21.5 |
| 80 | 80 | 104 | 95 | 105 | 45.0 | 15.0 | 22.0 |
| 85 | 85 | 109 | 100 | 110 | 45.0 | 15.0 | 22.0 |
| 90 | 90 | 114 | 105 | 115 | 50.0 | 15.0 | 22.0 |
| 95 | 95 | 119 | 110 | 120 | 50.0 | 15.0 | 22.0 |
| 100 | 100 | 124 | 115 | 125 | 50.0 | 15.0 | 22.0 |
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal,
Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal,
Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal,
Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal,
Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal,
Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps,
Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,
Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
