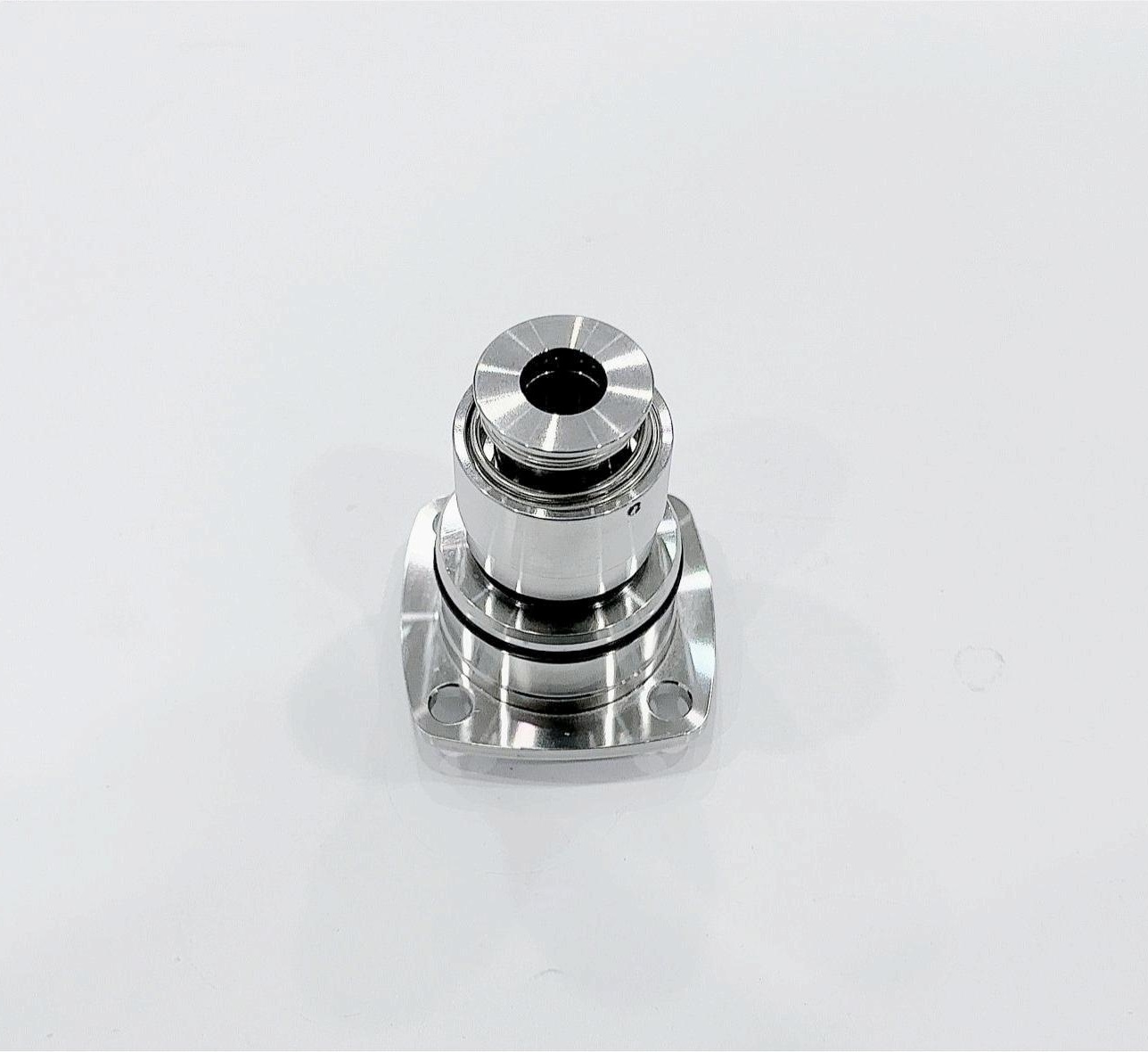

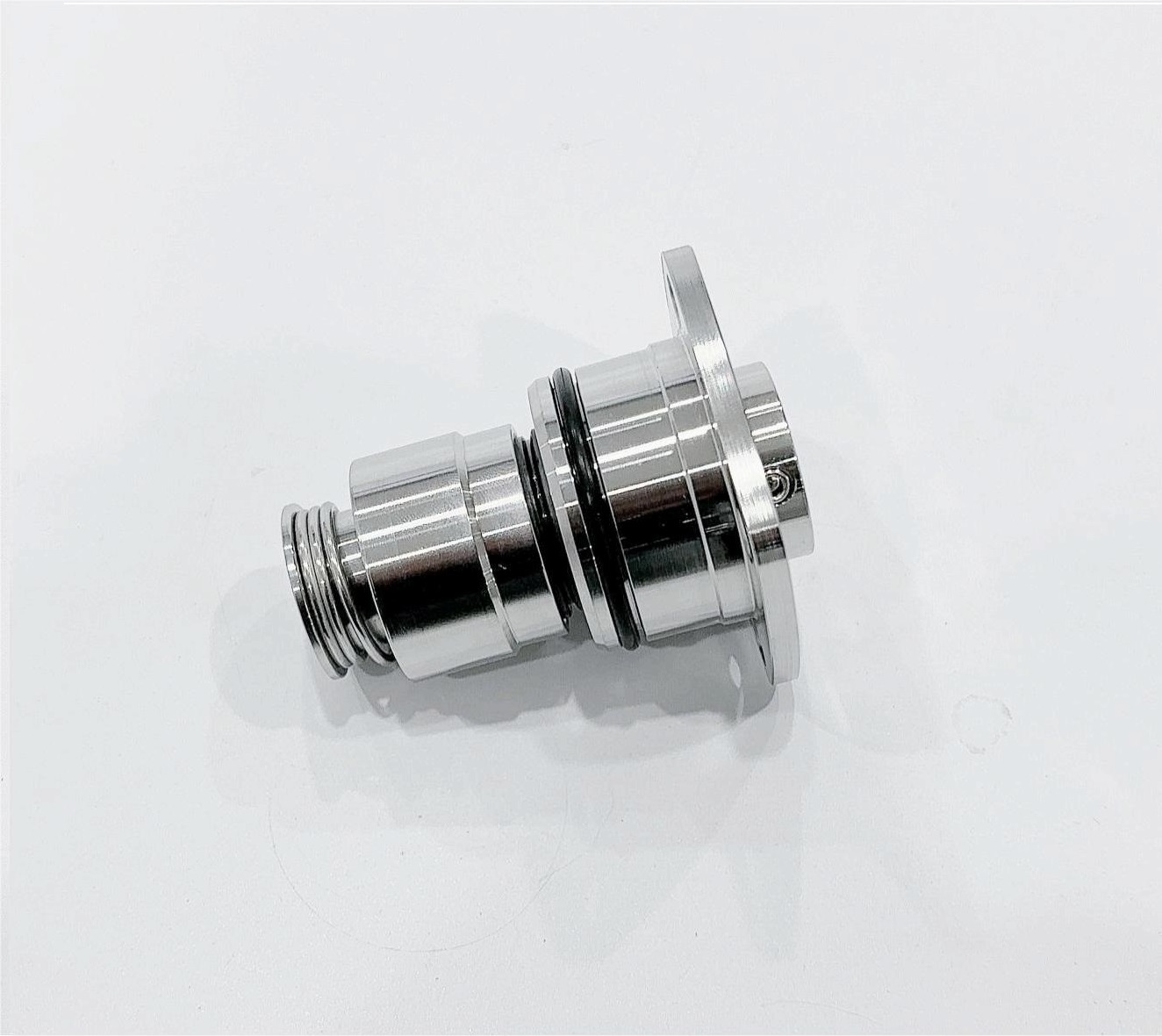

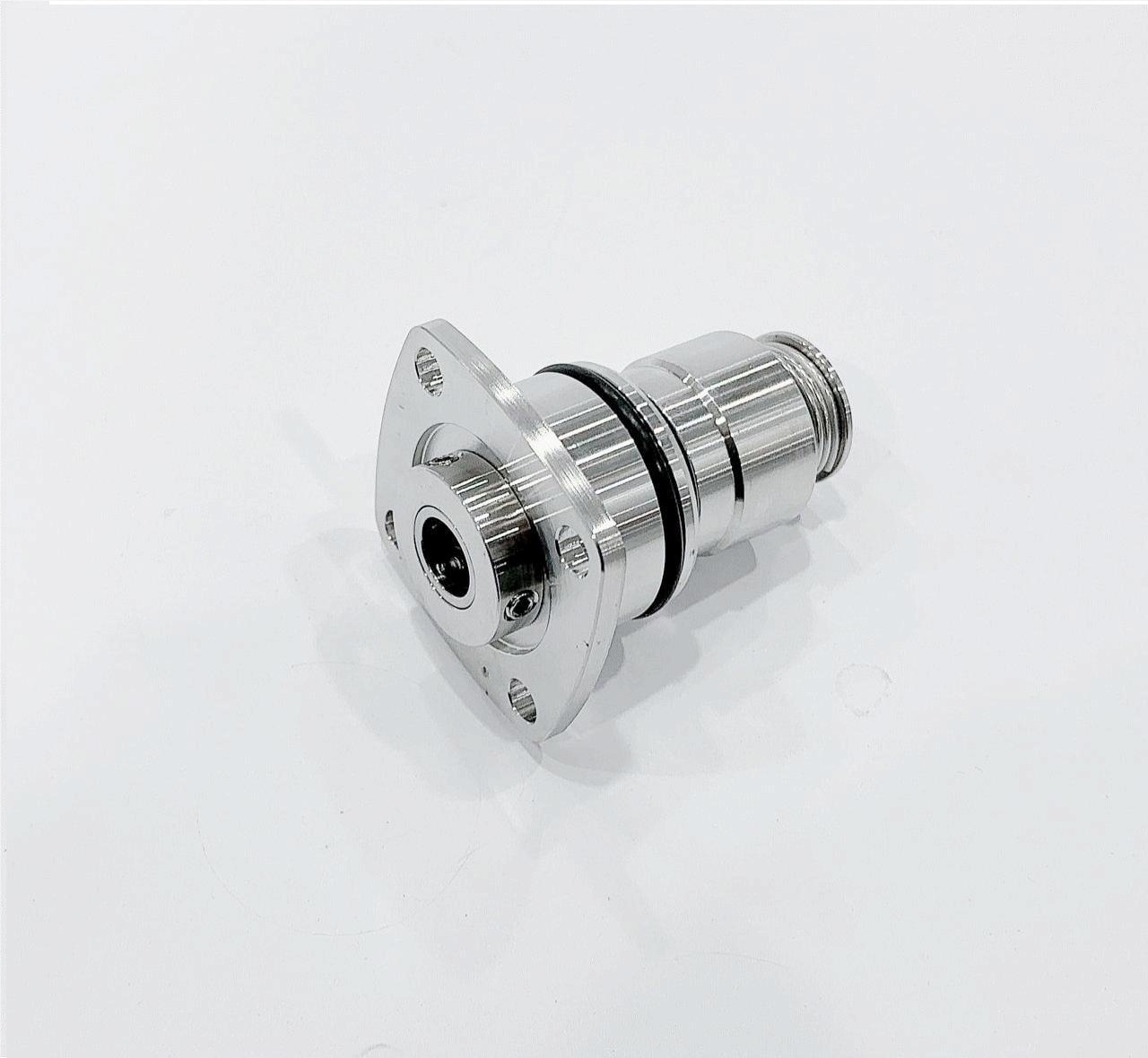

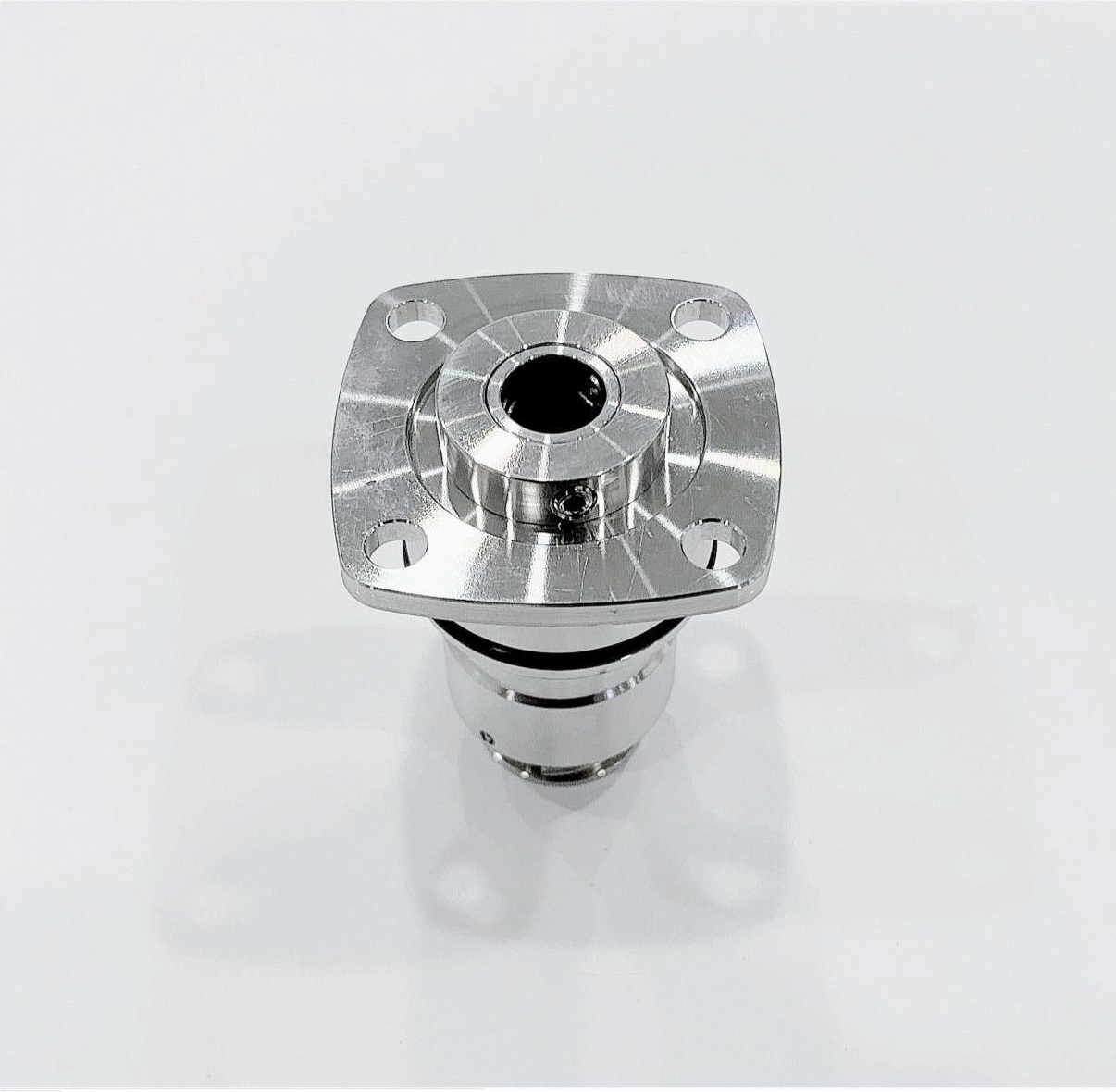

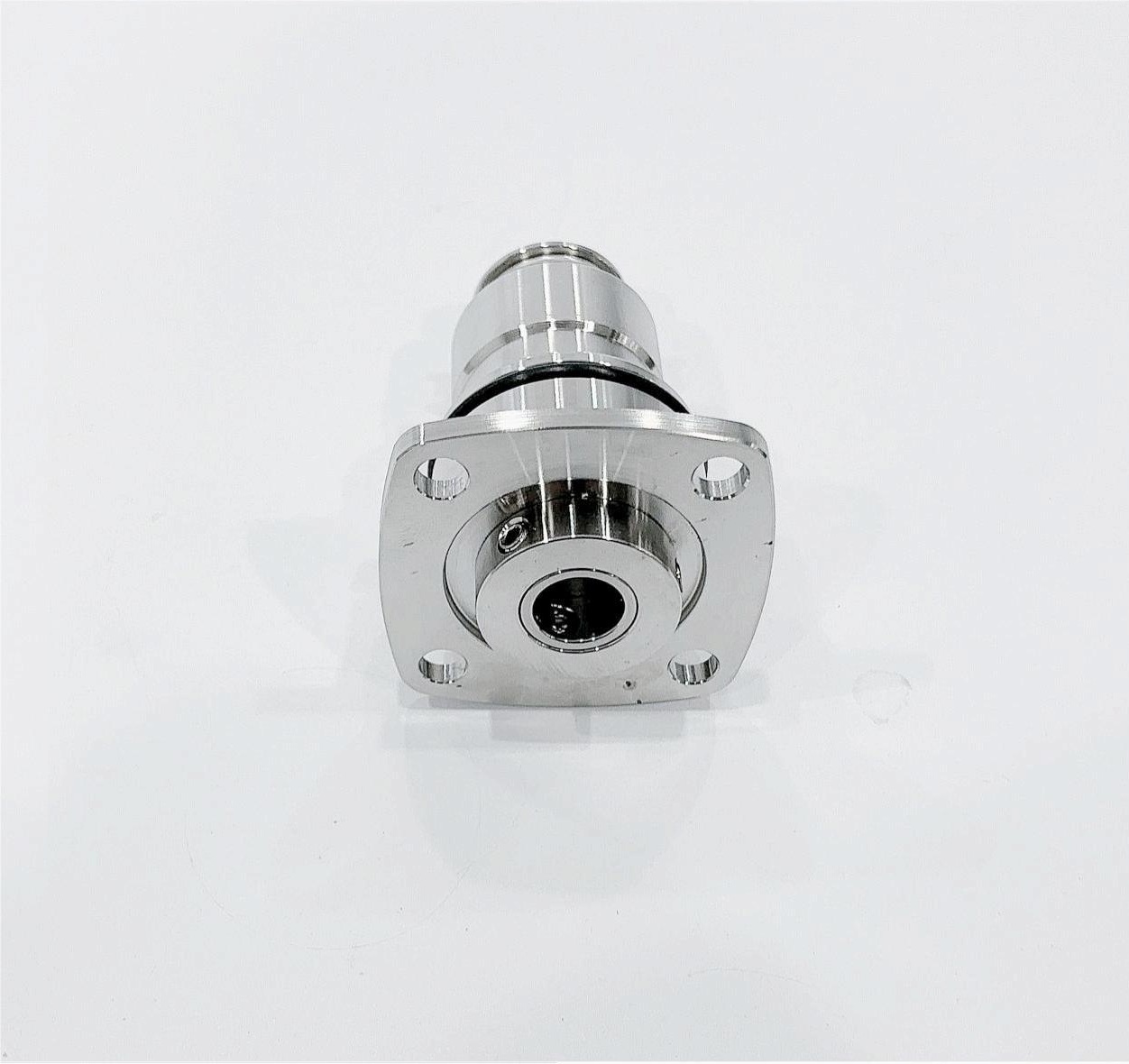

Mechanical Seal EB-B 12mm 16mm 20mm Suit for Ebara EVMS EVMSG

최소 주문 수량 : 10개 가격 : Negotiated
포장 세부 사항 : 요구 사항으로 상자 배달 시간 : 20-30일
지불 조건 : T/T, 서부 동맹, L/C 공급 능력 : 10000pc/월
원래 장소: 중국산 브랜드 이름: JR
인증: iso9001 모델 번호: EB-B 12mm 16mm 20mm

상세 정보

재료: 식 식 FKM 기능: 오일펌프, 워터펌프용
운송 패키지: 상자 HS코드: 848420090
자격증: ISO9001 유형: 기계적 밀봉
표준 또는 비표준: 기준 크기: 기계적 밀봉 EB-A 12mm 16mm 20mm
사양: 기계적 밀봉 EB-A 12mm 16mm 20mm 제품명: 금속 밸브 기계 밀폐

제품 설명



Operational Conditions:

  1. Temperature: -20ºC to +180ºC
  2. Pressure: ≤2.5MPa
  3. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities

Temperature
-20℃ to 200℃, dependent on the elastomer
Pressure
Up to 21 bar
Speed
Up to 23 m/s
End play/axial float allowance
±0.1mm
Size
EB-A 12mm 16mm 20mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

Mechanical Seal EB-A 12mm 16mm 20mm



Mechanical Seal EB-B 12mm 16mm 20mm Suit for Ebara EVMS EVMSG 0Mechanical Seal EB-B 12mm 16mm 20mm Suit for Ebara EVMS EVMSG 1Mechanical Seal EB-B 12mm 16mm 20mm Suit for Ebara EVMS EVMSG 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
