O링과 균형적 파형 스프링 H7N 산업적 메커니컬 실

제품 상세 정보:
원래 장소: 중국에서 만들어집니다
브랜드 이름: JRH7N
인증: ISO9001
모델 번호: H7N
결제 및 배송 조건:
최소 주문 수량: 5pc
가격: Negotiated
포장 세부 사항: 요구조건으로서의 박스
배달 시간: 20-30DAYS
지불 조건: T / T, 웨스턴 유니온, L / C
공급 능력: 100000pc/month

상세 정보

재료: 원문대로 원문대로 바이톤 기능: 오일 펌프, 물 펌프를 위해
운반 포장: 박스 HS는 코드화됩니다: 848420090
상술: 버그만 펌프 기계적 실링 H7N 증명서: ISO9001
타입: 기계적 축 밀봉 H7N을 위해 표준: 표준
방식: 버그만 타입 H7N 오우 -벨소리 기계적 실링 상품 이름: H7N 버그만 메커니컬 실
하이 라이트:

ISO9001 산업적 메커니컬 실

,

H7N 산업적 메커니컬 실

,

H7N 파형 스프링 기계적 실링

제품 설명

Mechanical Seal Of Burgmann H7N Wave Spring Shaft Mechanical Seals H7N Series Balanced Seals With O-Ring For Pumps



Operational Conditions:

  1. Wave Spring Mechanical Seal
  2. Universal application opportunities (standardization)
  3. Efficient stock keeping due to easily interchangeable faces
  4. Extended selection of materials
  5. Flexibility in torque transmissions
  6. Self cleaning effect
  7. Short Installation length possible (G16)
  8. Temperature: -20 - 180℃
  9. Speed: ≤20m/s
  10. Pressure: ≤2.5 Mpa

 Materials:

  • Rotary face: Stainless steel/Carbon/Sic/TC
  • Stat Ring: Carbon/Sic/TC
  • Seat Type: Standard SRS-S09, Alternative SRS-S04/S06/S92/S13
  • SRS-RH7N have pump ring design which called H7F

Performance Capabilities

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 16 bar
Speed
Up to 20 m/s
End play/axial float allowance
±0.1mm
Size
14mm to 100mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Carbon, SiC, TC
Elastomer
NBR, EPDM, etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.



  • For stepped shafts
  • Single seal
  • Balanced
  • Super-Sinus-Spring or multiple spring rotating
  • Independent of direction of rotation
  • Integrated pumping device available
  • Variant with seat cooling available

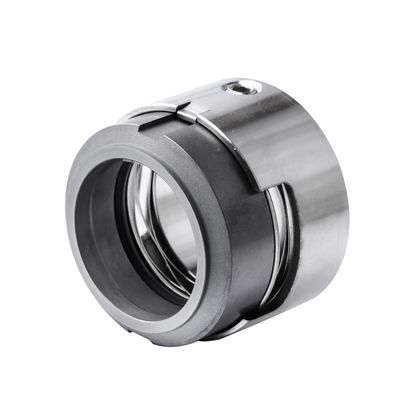

O링과 균형적 파형 스프링 H7N 산업적 메커니컬 실 0

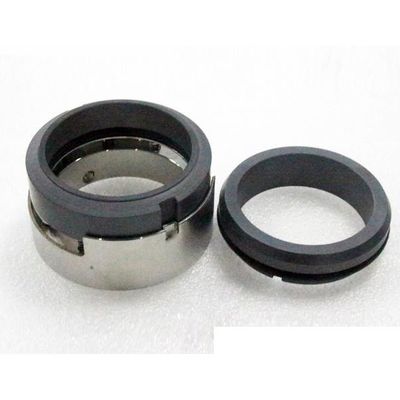

O링과 균형적 파형 스프링 H7N 산업적 메커니컬 실 1



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
