홈 제품 소개산업적 메커니컬 실Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series
Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series
Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series
Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series
지금 연락

Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series

최소 주문 수량 : 5pc 가격 : Negotiated
포장 세부 사항 : 요구 사항으로 상자 배달 시간 : 20-30일
지불 조건 : T/T, 서부 동맹, L/C 공급 능력 : 100000PC/월
원래 장소: 중국산 브랜드 이름: JR
인증: ISO9001 모델 번호: LKH(P07-31.7)

상세 정보
재료: 원문대로 FKM 자동차 CER NBR를 토하세요 기능: 오일펌프, 워터펌프용
운송 패키지: 상자 Hs 코드: 848420090
사양: LKH(P07-31.7) 자격증: ISO9001
유형: FBD를 위해 기준: 기준
스타일: 위생 펌프를 위한 충분한 AES-P07 메커니컬 실 제품명: 위생 펌프를 위한 AES 타입 P07 기계적 실링

제품 설명

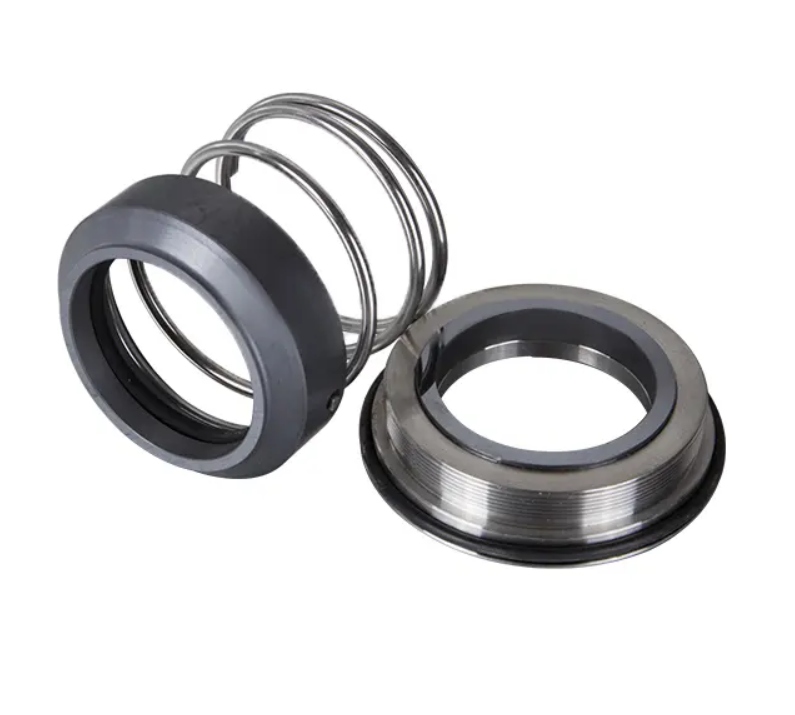

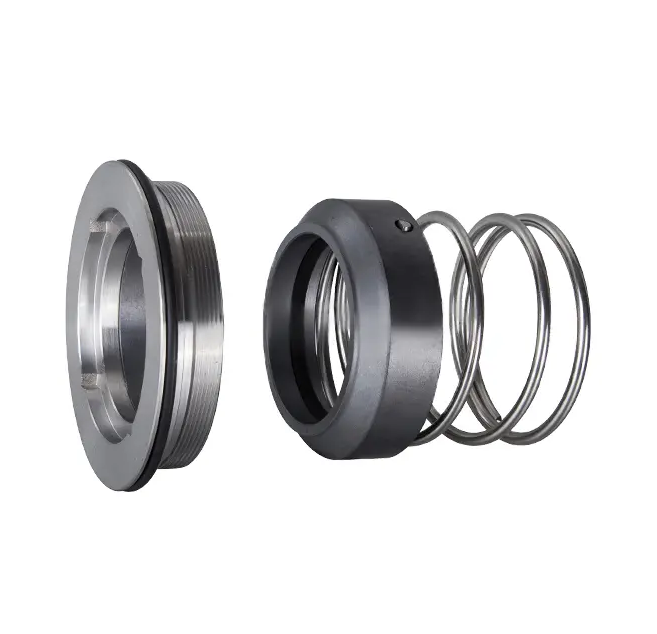

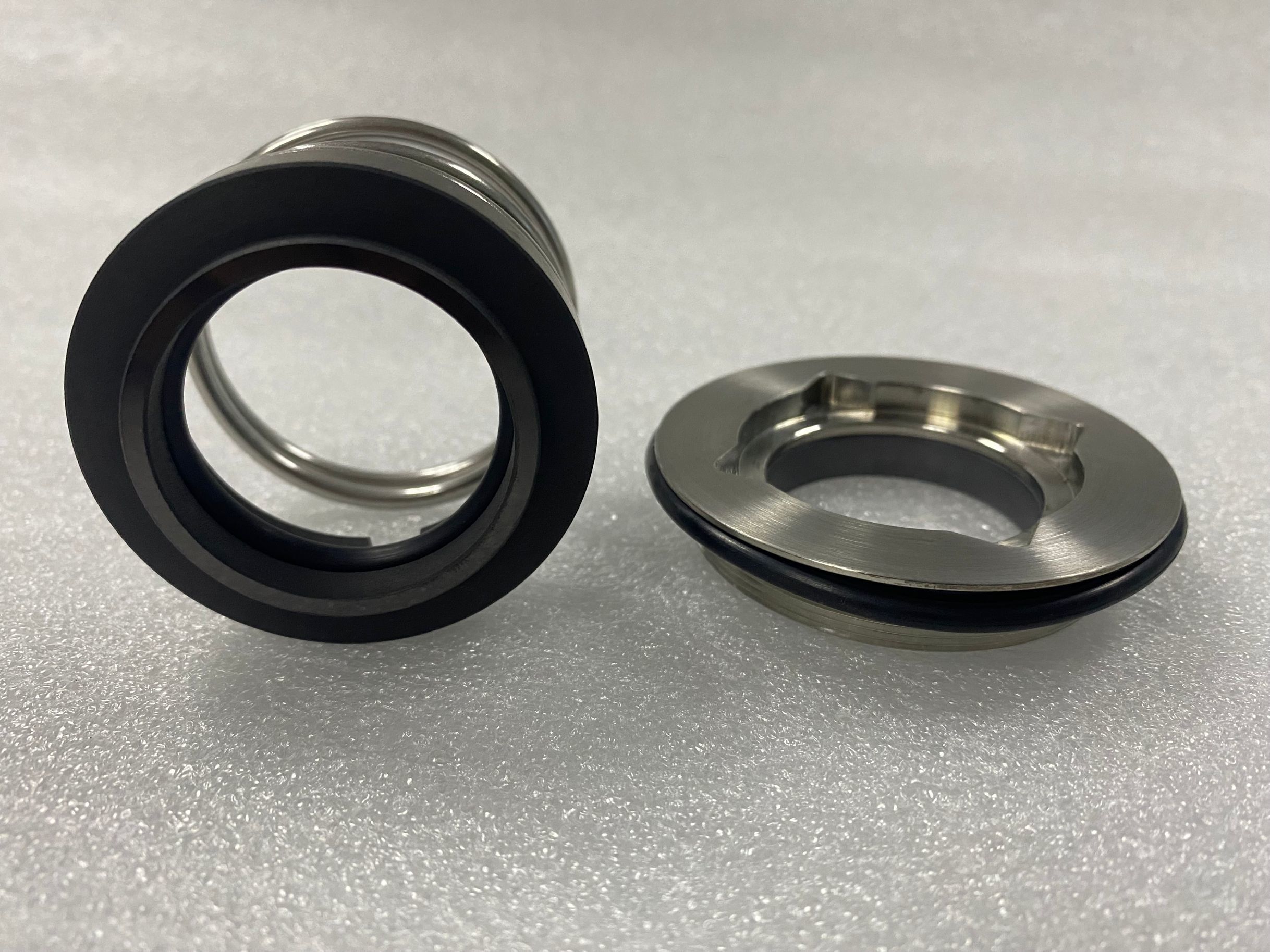

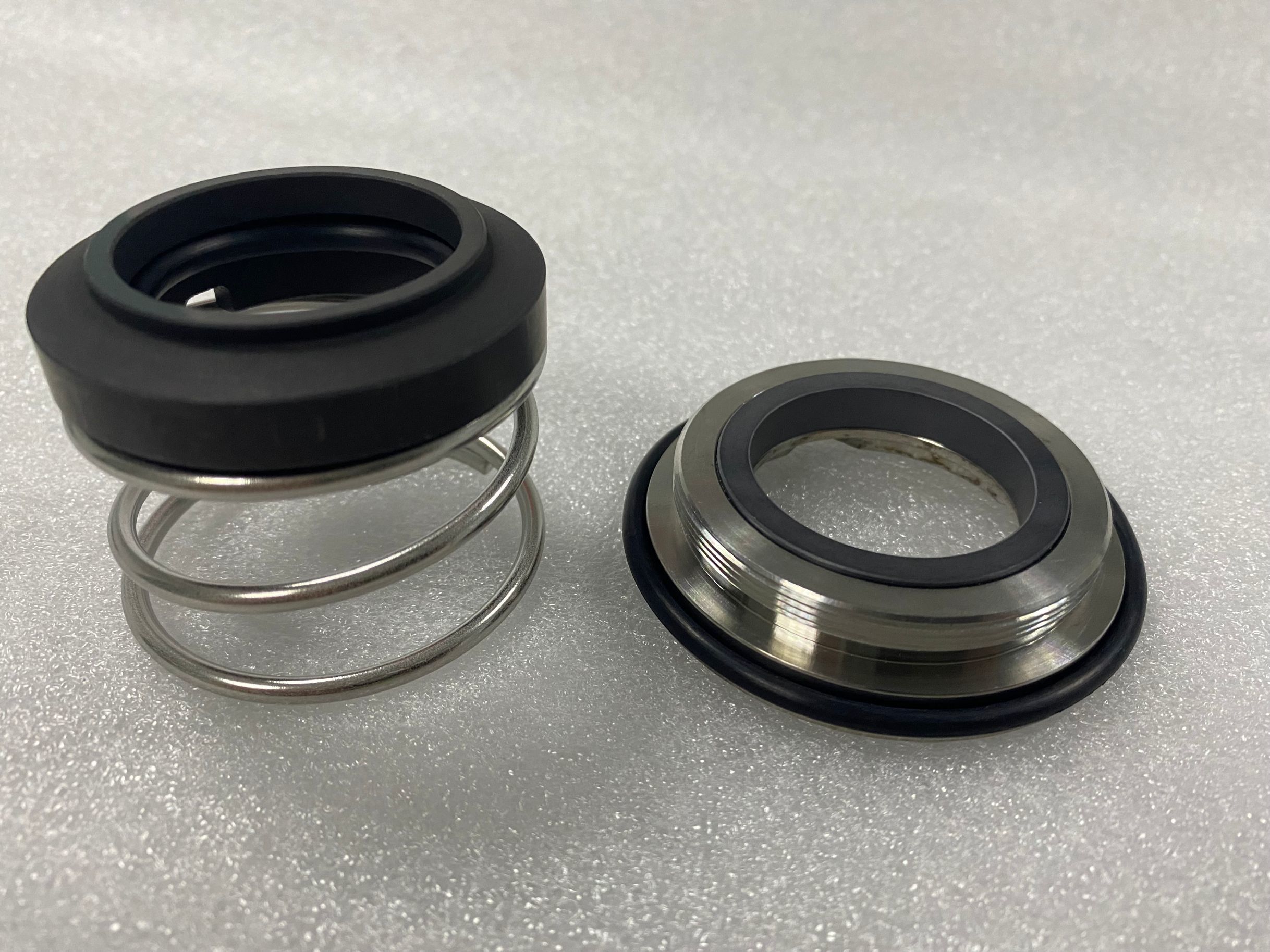

Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series​



Operational Conditions:

  1. AES type P07 mechanical Seal for sanitary pump with single spring
  2. Equivalent to AES P07
  3. Suitable for water pump mechanical seal pumps CN,EM,FM,GM,LKH,ME,MR
  4. Temperature: -20ºC to +180ºC
  5. Pressure: ≤2.5MPa
  6. Speed: ≤15m/s

Materials:

  • Stationary Ring: CAR,CER,SIC,SSIC
  • Rotary Ring: Q5, Resin Impregnated Carbon Graphite(Furan), SIC
  • Secondary Seal: FKM, NBR,EPDM
  • Spring and Metal Parts: 304/316

Performance Capabilities

LKH(P07-31.7) mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
10mm to 80mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316




1. .it is equivalent to

LKH(P07-31.7)

2.Our seals can replace the original seals.

3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.

Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series 0

Alfa Laval Mechanical Seal P07-31.7MM CAR SIC EPDM For Hygienic Centrifugal Pump Seal LKH Series 1

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
